Advanced Flat Panel Digital X-ray System: Optimal Clarity and Precision in Diagnostic Imaging

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment

Product Description

📋

Basic Specifications

Certification
CE, ISO13485
Group
Human
Power Supply
380V (340V-420V) or 220V (195V-250V)
Fluoroscopy Tube Voltage
50-95kv (Continuous)
Fluoroscopy Tube Current
0.5-5mA (Continuous)
Radiography Tube Voltage
50-100kv (Continuous)
Small Focus Current
50mA
Big Focus Current
50, 100, 150, 200mA
Spot-Film Current
150mA (Fixed)
Exposure Time
0.04-6.3s (23 Grades)
Max. DC Output Voltage
100kv
Max. DC Output Current
200mA (Instant); 5mA (Runn)
HS Code
9022140090
Production Capacity
2000 Sets/Month
🚀

Product Description

Product Name: 5.6kW Portable Digital Radiography (DR) System with Touch Screen

Model Numbers: UM-DR056A12 / UM-DR056A14 (with Li-battery)

Power Specifications

  • Power Output: 5.6kW with Touch Screen
  • Power Supply: Single phase 220-240VAC (internal resistance ≤ 0.5Ω)
  • Working Frequency: 100KHz

X-ray Tube Specifications

  • mA Range: 10mA - 100mA
  • mA Step: 0.1mA - 200mA
  • KV Range: 40 - 125kV
  • Exposure Time: 2ms - 6300ms
  • Tube Focus: 0.6/0.6mm
  • Anode Heat Capacity: 42KHU (30kJ)

Detector Specifications

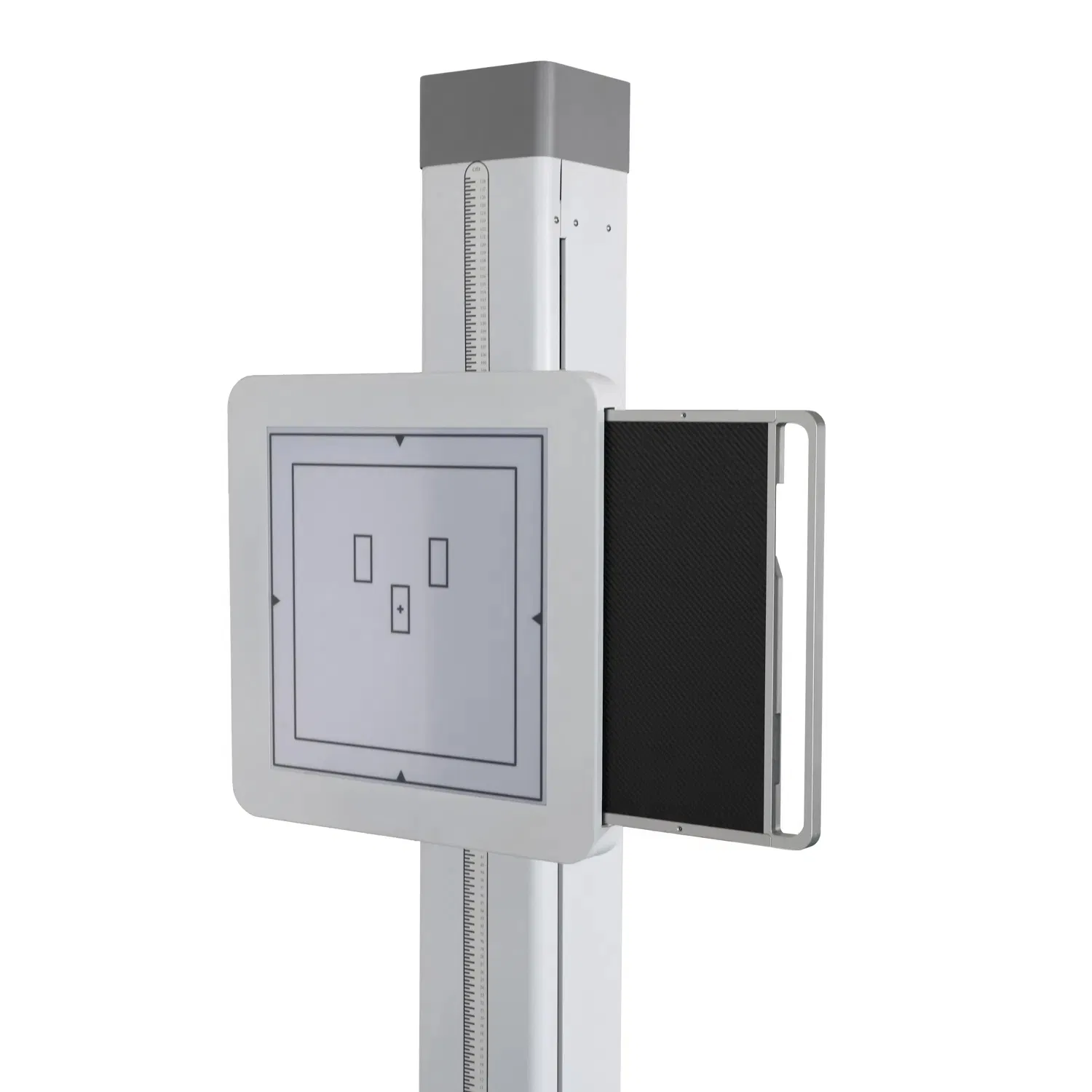

  • Type: Flat Panel Detector
  • Size: 17" x 17" inch (14" x 17" option available)
  • Pixels: 140μm
  • A/D Conversion: 16bits
  • Spatial Resolution: 3.6 LP/mm

Key Features

  • 10.4-inch LCD screen for easy parameter adjustment
  • Lightweight and highly portable design
  • Remote control operation for safe patient positioning
  • Adjustable Z-axis: 90° - 160°
  • Supports 100-200 shots per charge (Battery model)
🖼️

Detailed Visuals

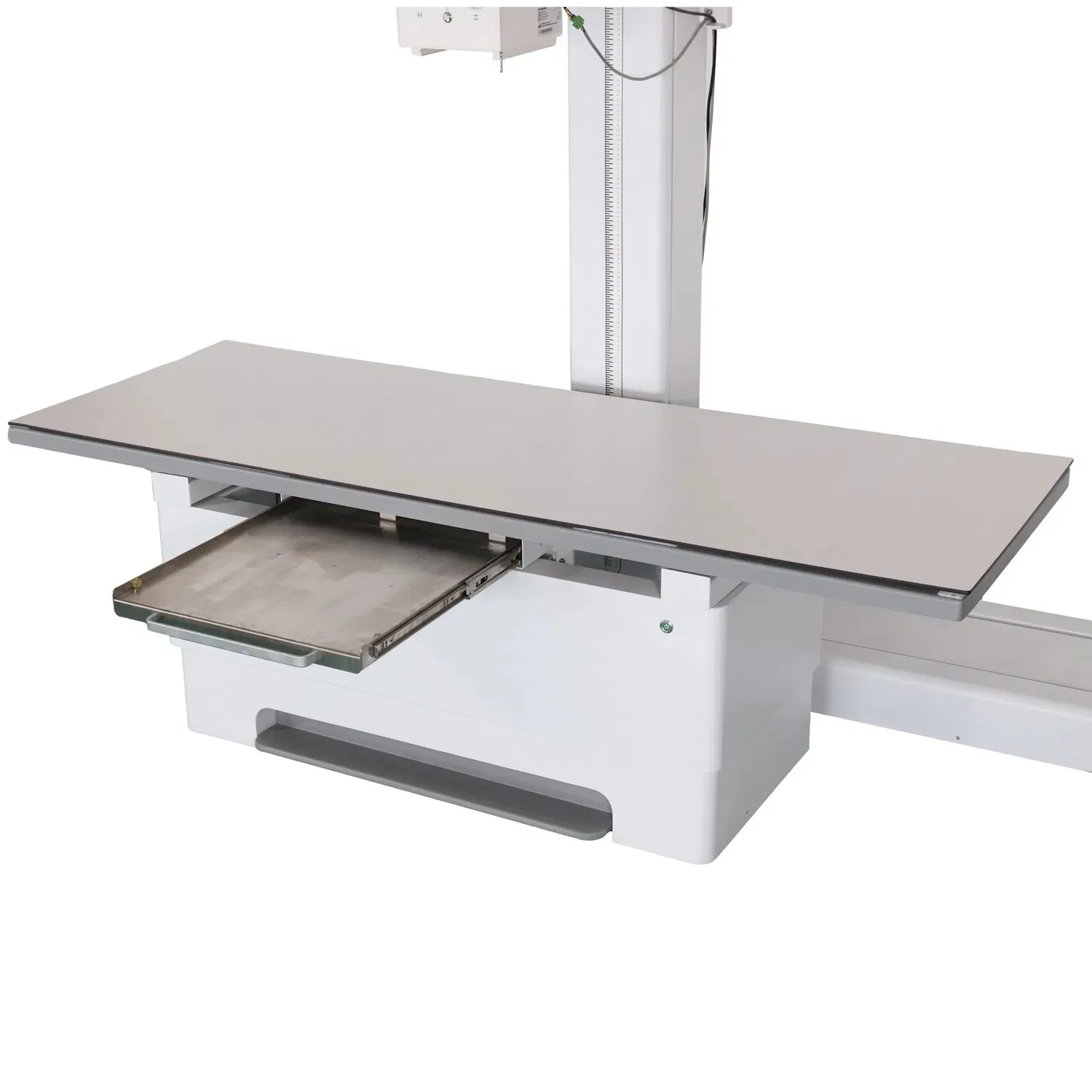

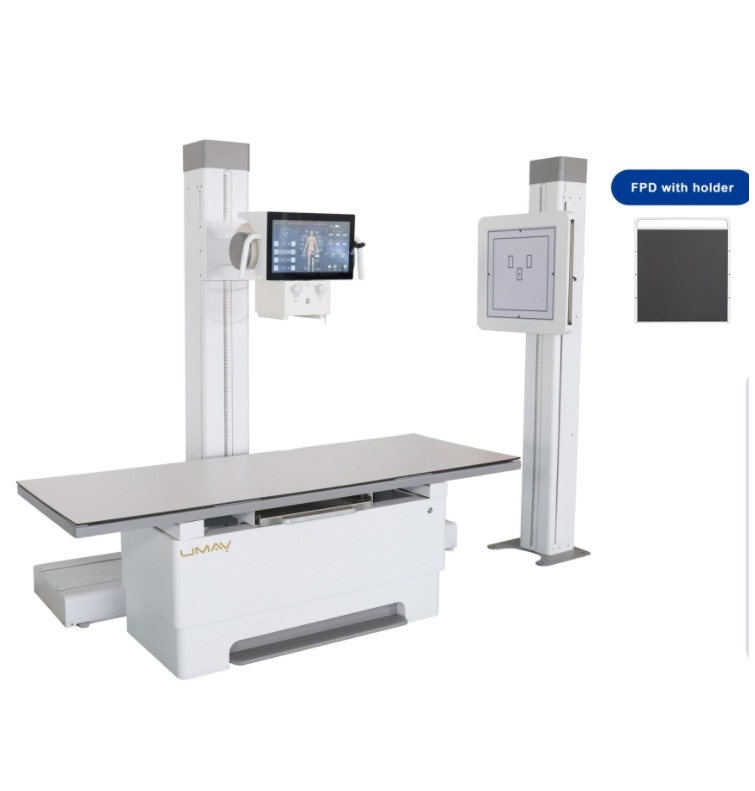

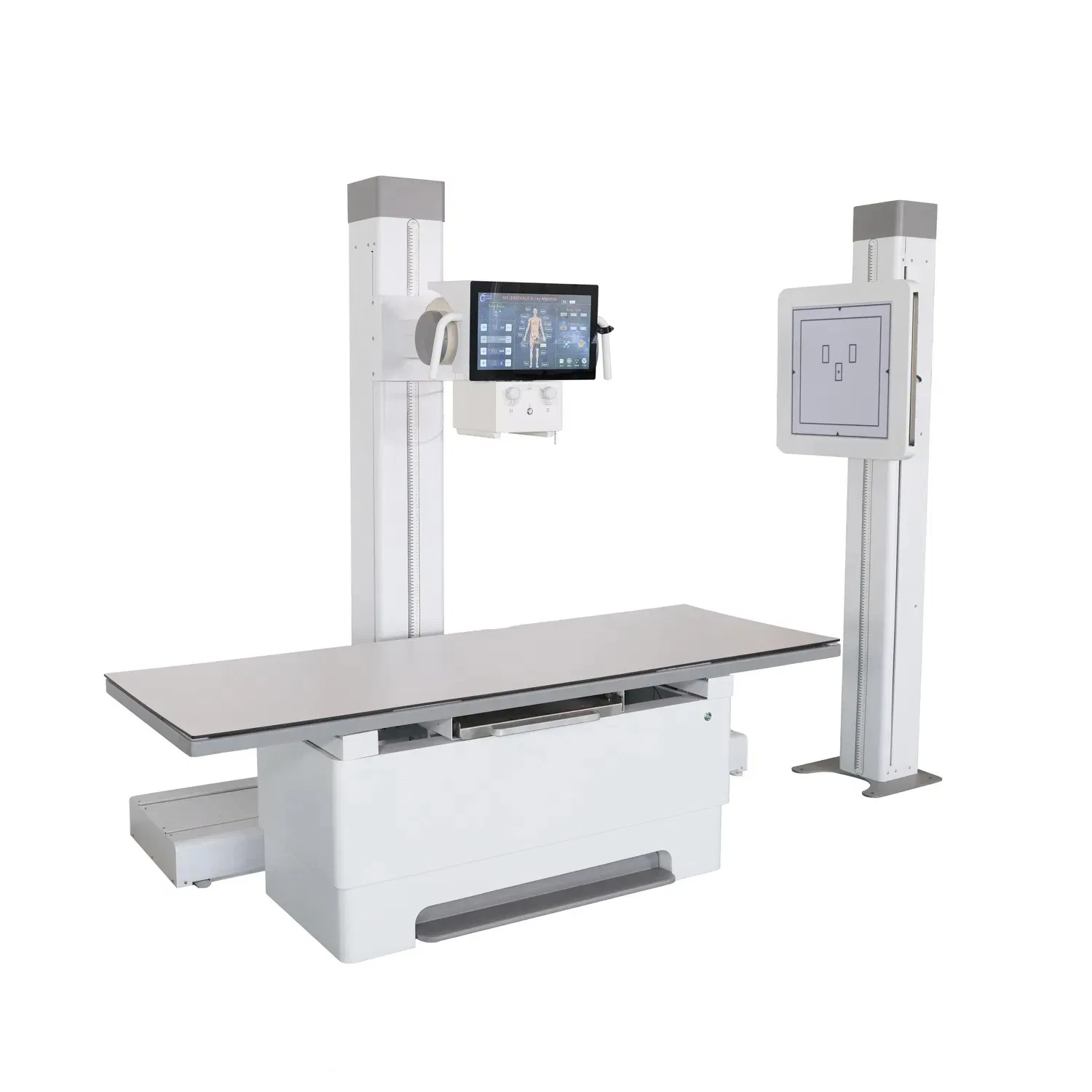

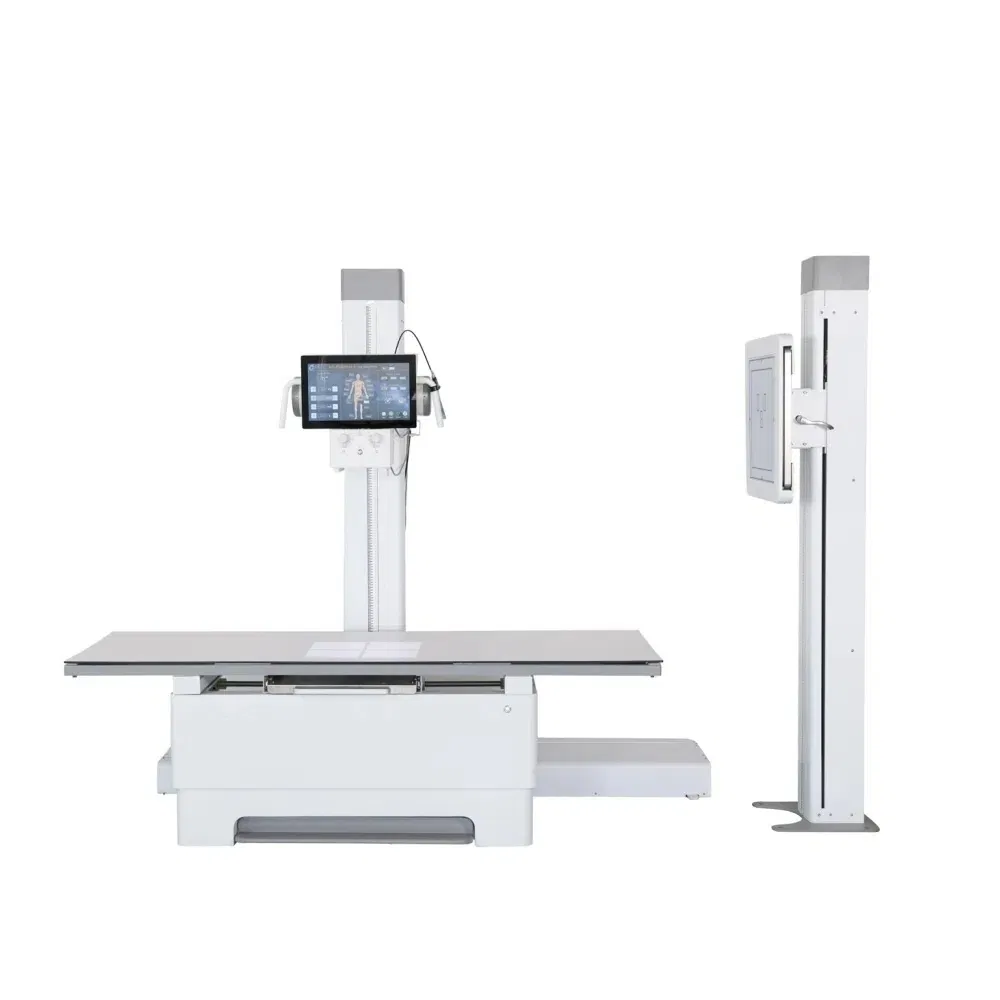

Advanced Flat Panel Digital X-ray System

Packaging & Logistics

Packaging & Shipping

Operational Capacity

Frequently Asked Questions

1. What are the main applications of this Portable DR System? The system provides excellent imaging for human anatomy, including the chest, abdomen, pelvis, and extremities. It is designed for adults, children, and specialized imaging for hands and feet.
2. How is the product quality guaranteed? Quality is ensured through a rigorous process involving pre-production sample testing before mass production and a final comprehensive inspection before every shipment.
3. What is the difference between model UM-DR056A12 and UM-DR056A14? Model UM-DR056A14 includes a built-in Li-battery (25V/13.3Ah) which supports 100-200 shots on a single charge, making it ideal for mobile use without constant power access.
4. Why should we choose your medical equipment over other suppliers? We offer an experienced R&D team, reliable after-sales technical support, a large-scale production base, and comprehensive OEM/ODM services for customized solutions.
5. What specialized medical equipment do you provide? In addition to X-ray machines and flat panel detectors, we specialize in ultrasound machines, patient monitors, and oxygen concentrators.
6. What are the supported payment and delivery terms? We primarily operate under FOB delivery terms. Accepted payment methods include T/T, MoneyGram, PayPal, and Western Union to ensure a flexible and secure transaction.
