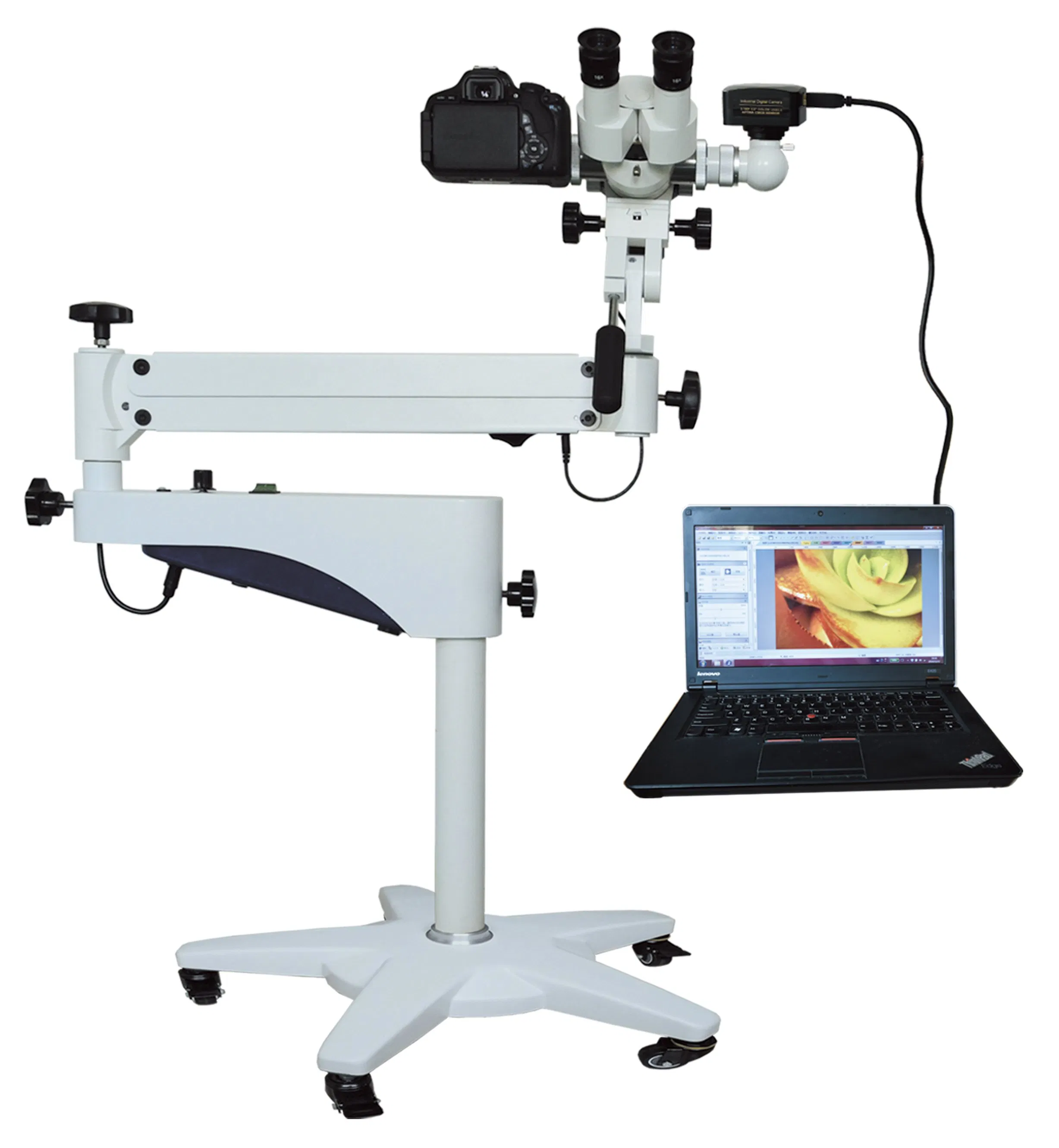

Advanced Digital Colposcope for Comprehensive Women's Health Care

1 / 5

Advanced Digital Colposcope for Comprehensive Women's Health Care

Customization:	Available
Certification:	CE, ISO13485
Group:	Adult+Children

Send Inquiry

Product Description

Basic Info.

Model NO.

CK-CZ

Product Name

Digital Colposcope

Warranty

1 Year

Observation Angle

45 Degree Tilted

Eyepiece Magnification

10X

Illumination

Coaxial 10W LED

Zoom Changer

0.4X-2.75X

Support Arm

Yes

MOQ

1PCS

Production Capacity

300 Sets Per Month

Product Description

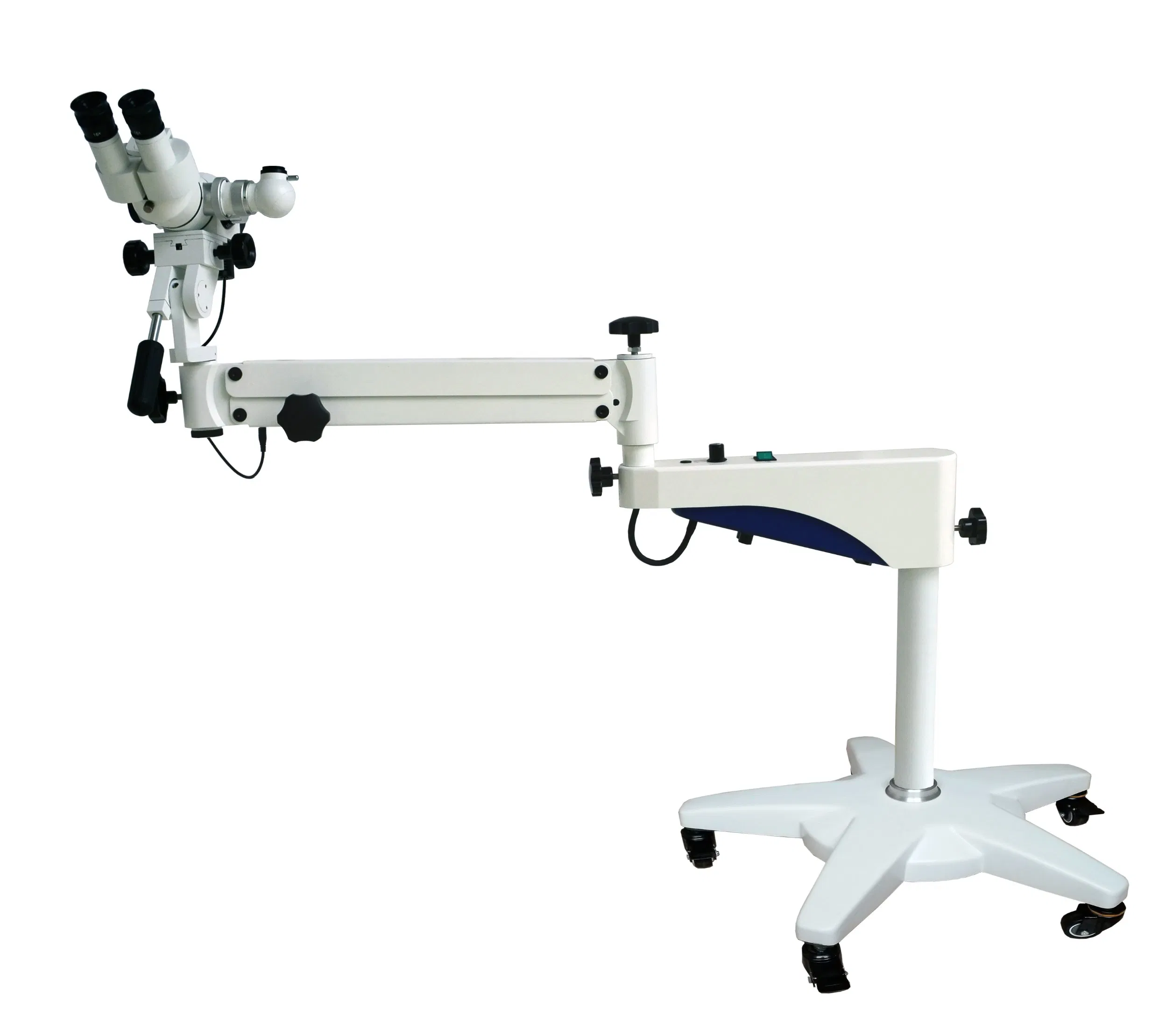

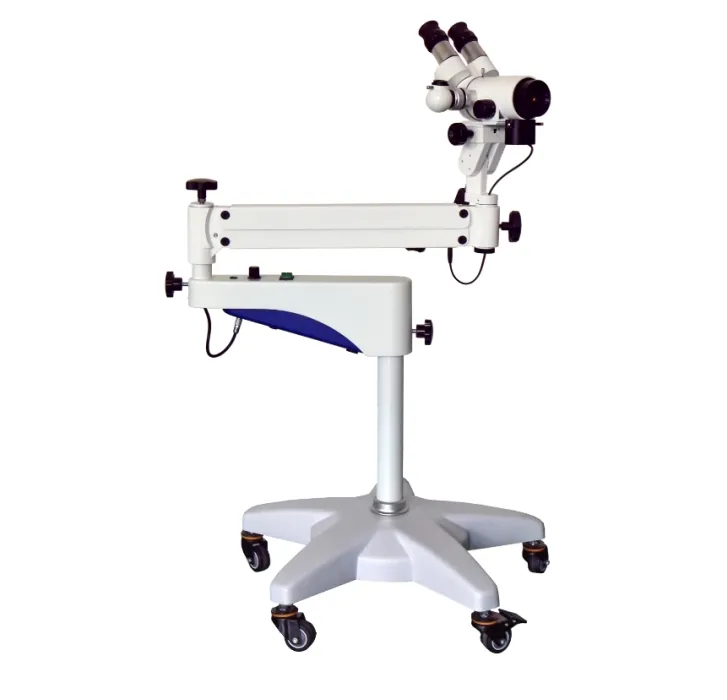

The CK-CZ Digital Video Colposcope is a precise optical instrument designed especially for gynecologic examination and diagnosis. Due to the high magnification of the instrument, pathological changes in the vagina, which are impossible to view with the naked eye, can be clearly observed, significantly enhancing diagnostic accuracy.

This zoom colposcope features sharp imaging, a wide field of view, uniform illumination, adjustable brightness, and easy operation, making it an essential instrument for gynecologic care.

Technical Specifications

Observation angle: 45° tilted
Magnification of eyepiece: 10X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Zoom Magnification changer: 0.4X-2.75X
Total Magnification: 2.4X-16X
Linear field: 80mm-13mm
Fine focusing distance: 20mm
Balance arm: Counterweight adjustable/lockable
Illumination: 10W LED, >30000lx
Filter: Build-in green & blue filters
Floor stand: Five-star base with casters
Video Adaptability: C-mount 1/3 inch attachable
Power supply: AC100V-AC240V

Optional Accessories: Demonstrator, Camera, SLR camera adapter, Monitor, Objective (F=230mm & F=280mm), Monitor mount.

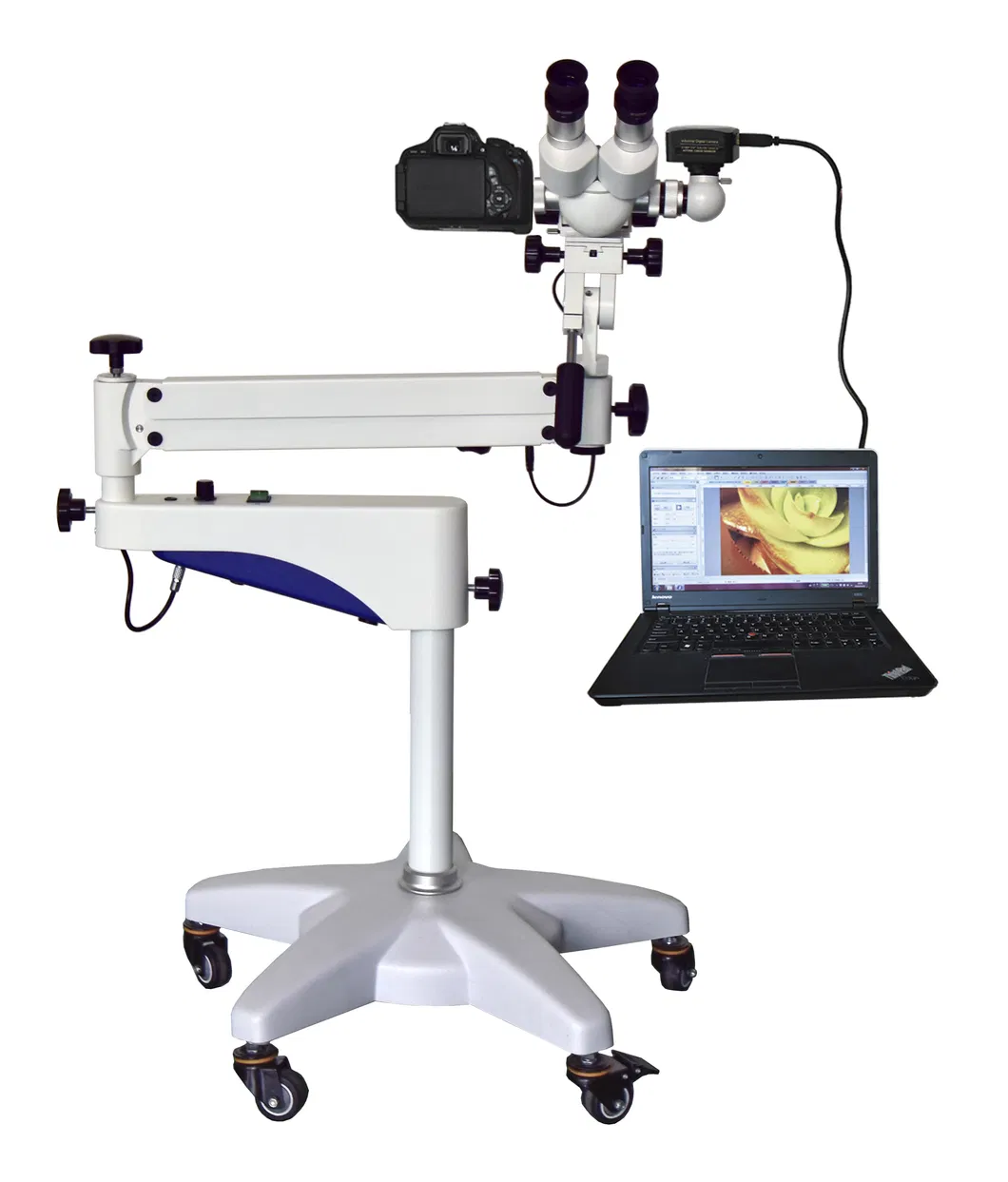

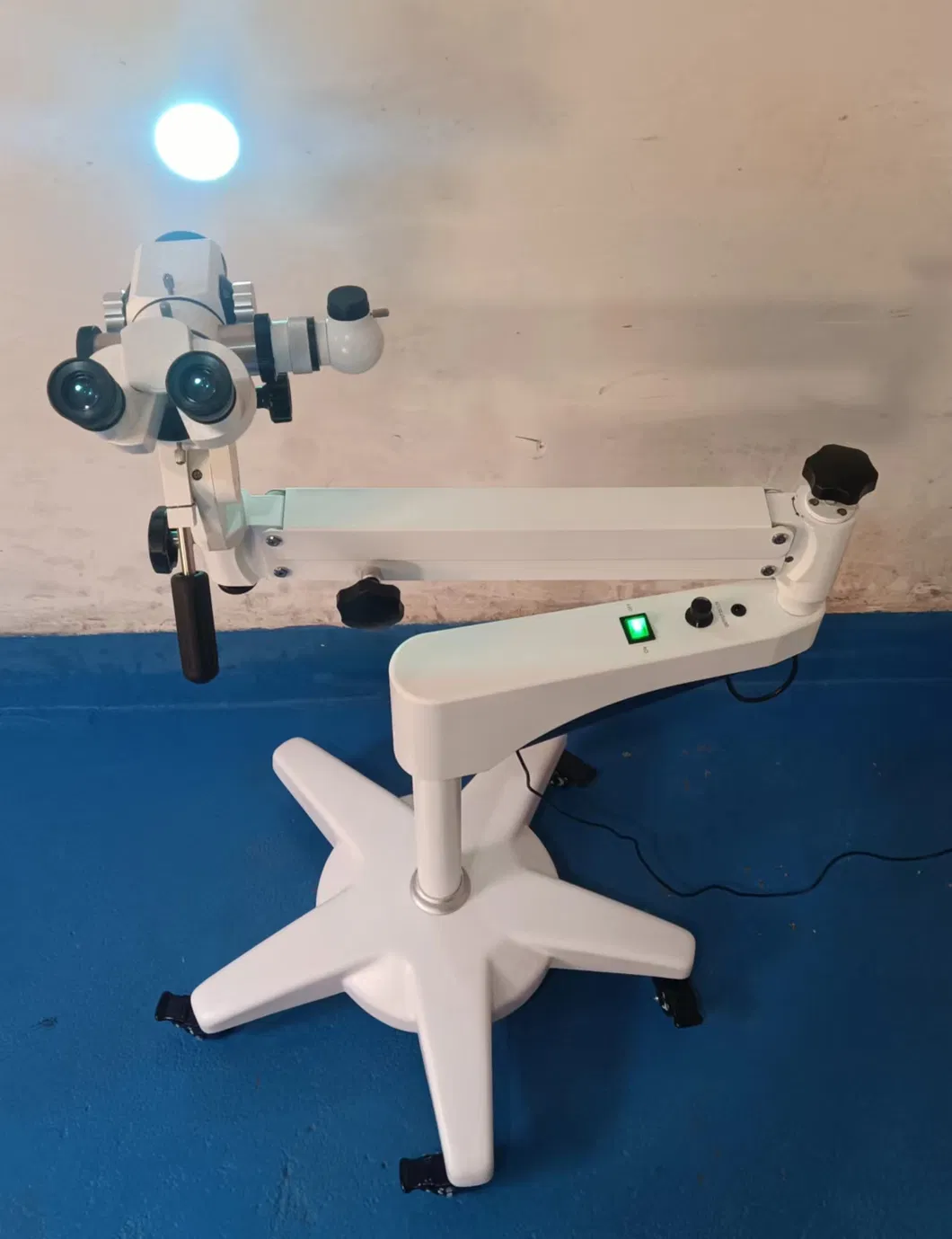

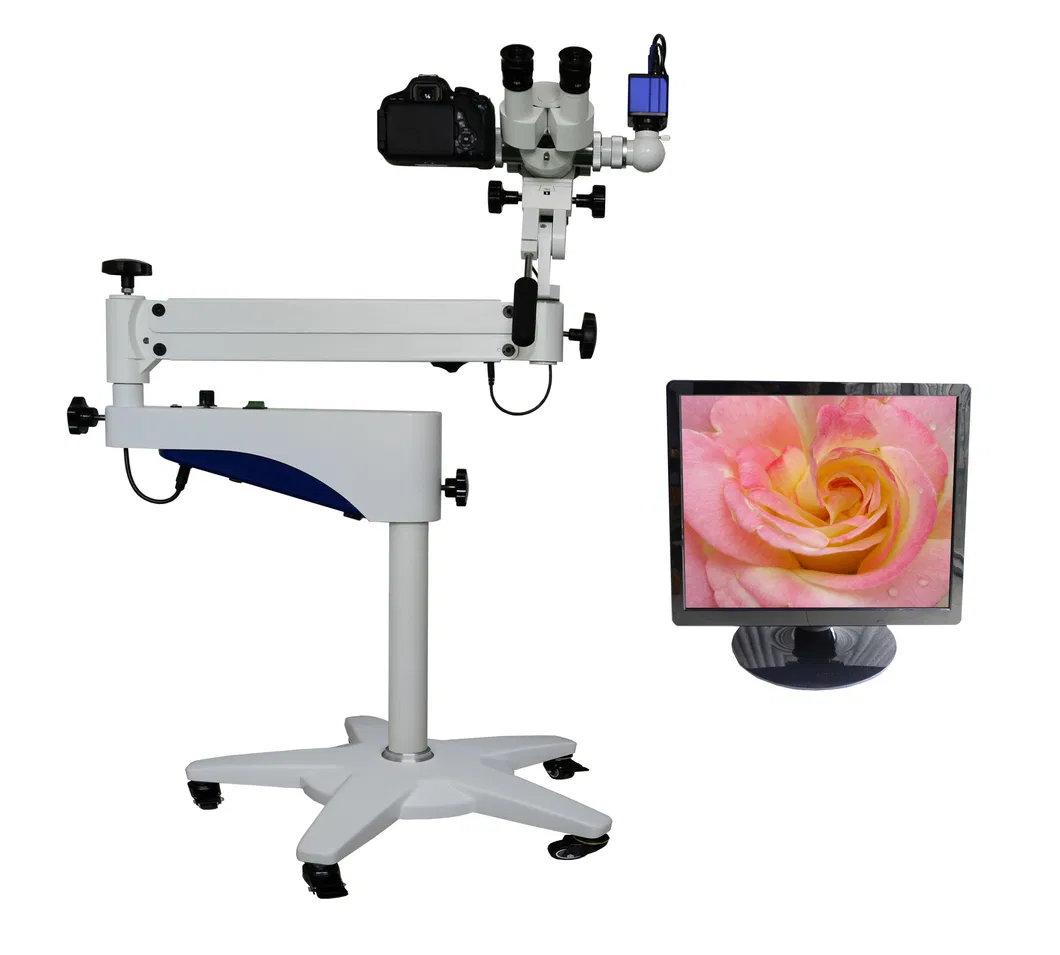

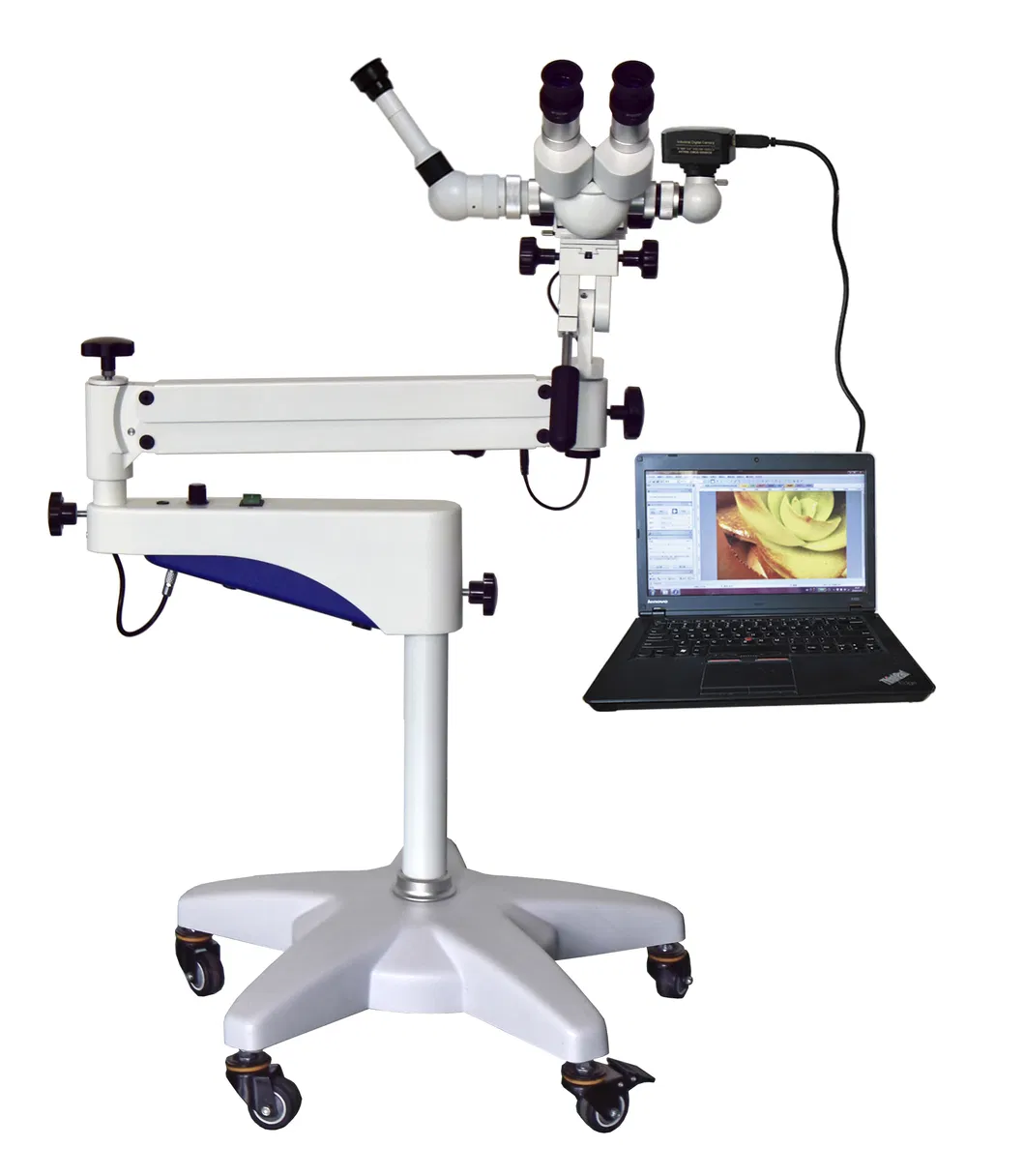

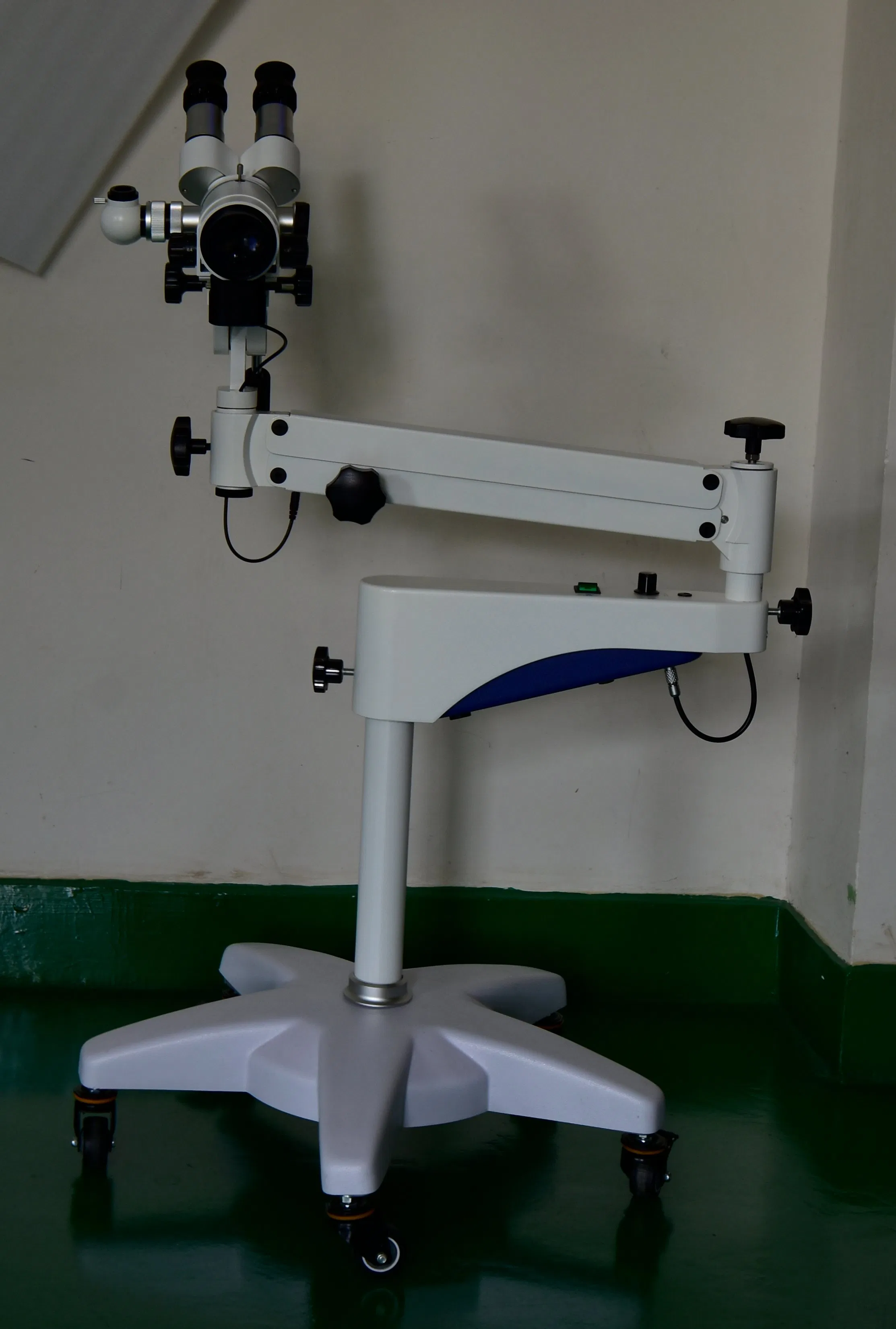

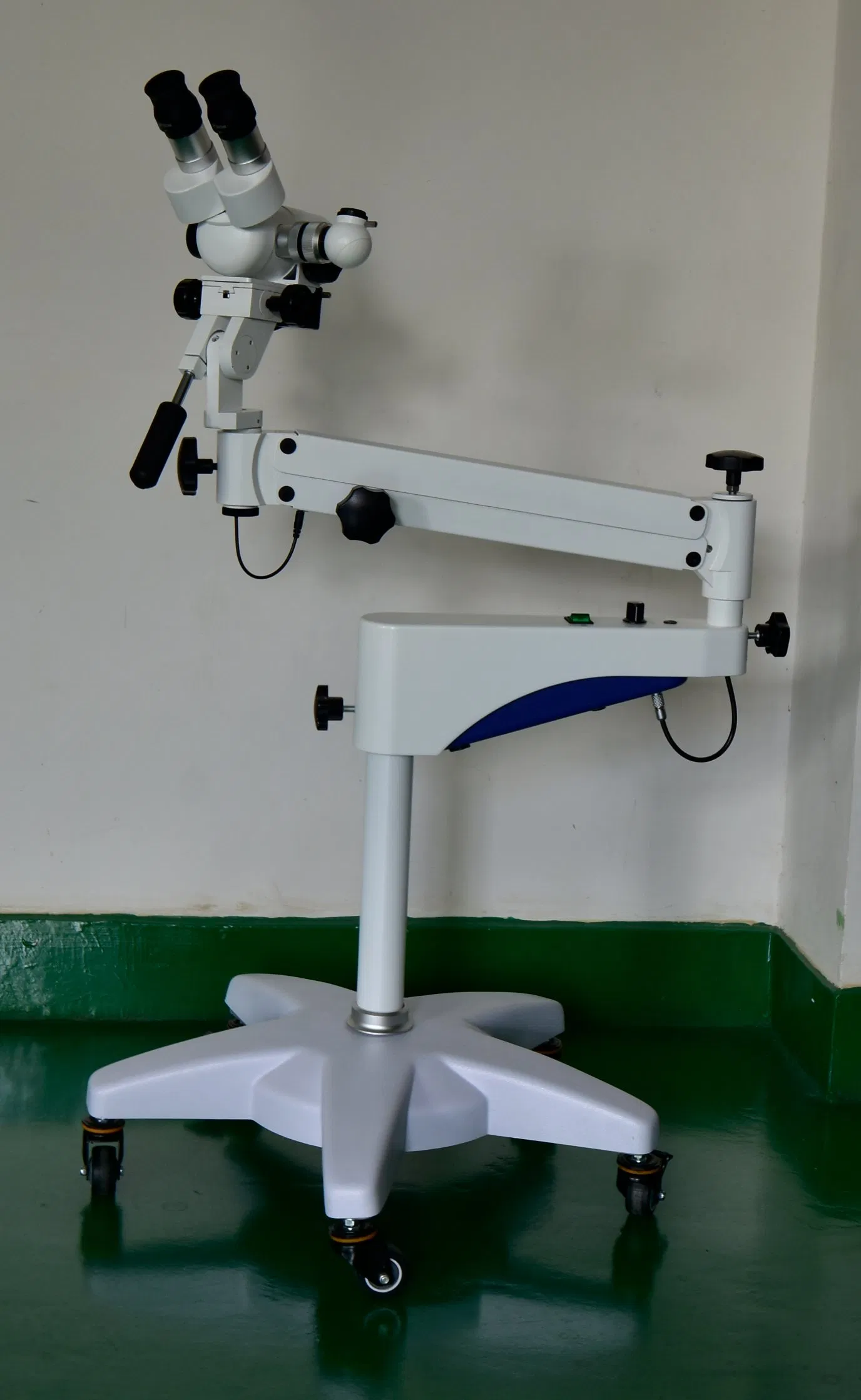

Detailed Product Photos

Manufacturing & Quality Assurance

Frequently Asked Questions

Q1: What is the primary use of the CK-CZ Digital Colposcope? A: It is designed specifically for high-precision gynecologic examinations, allowing doctors to view pathological changes in the vagina and cervix that are not visible to the naked eye.

Q2: What magnification range does this model offer? A: The device features a zoom magnification changer from 0.4X to 2.75X, providing a total magnification range of 2.4X to 16X.

Q3: How is the illumination handled for clear viewing? A: It uses a high-intensity 10W LED coaxial light source with adjustable brightness, providing illumination levels exceeding 30,000lx for uniform clarity.

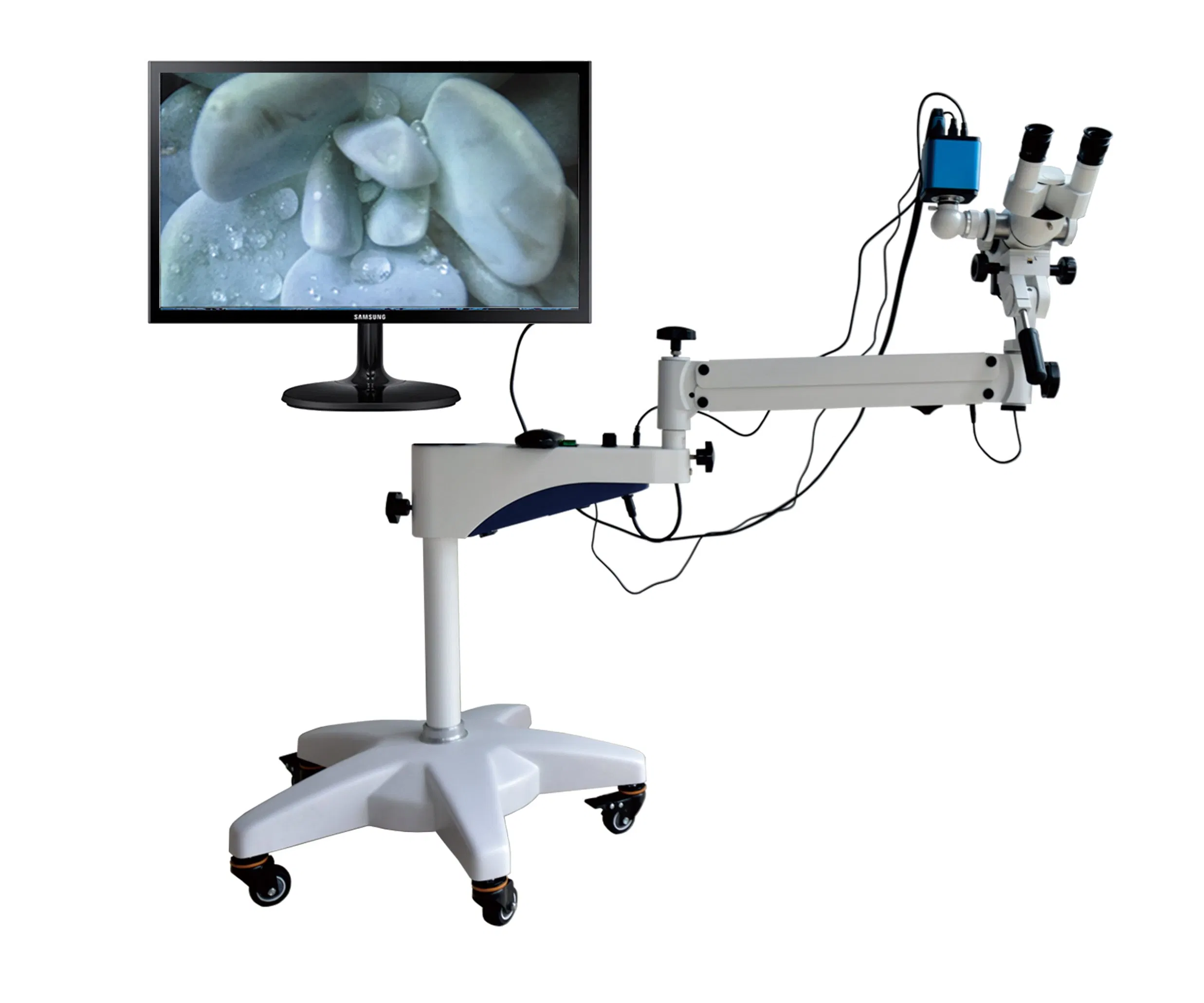

Q4: Can this colposcope be connected to a video system? A: Yes, it includes a beamsplitter and video camera adapter (C-mount 1/3 inch), making it compatible with various digital video cameras and monitors.

Q5: Is the stand portable and stable? A: Yes, it features a sturdy five-star base with high-quality casters for easy mobility and a balance arm that is counterweight adjustable and lockable.

Q6: What filters are included in the optical system? A: The instrument comes with built-in green and blue filters to assist in highlighting vascular patterns and tissue details during examination.
