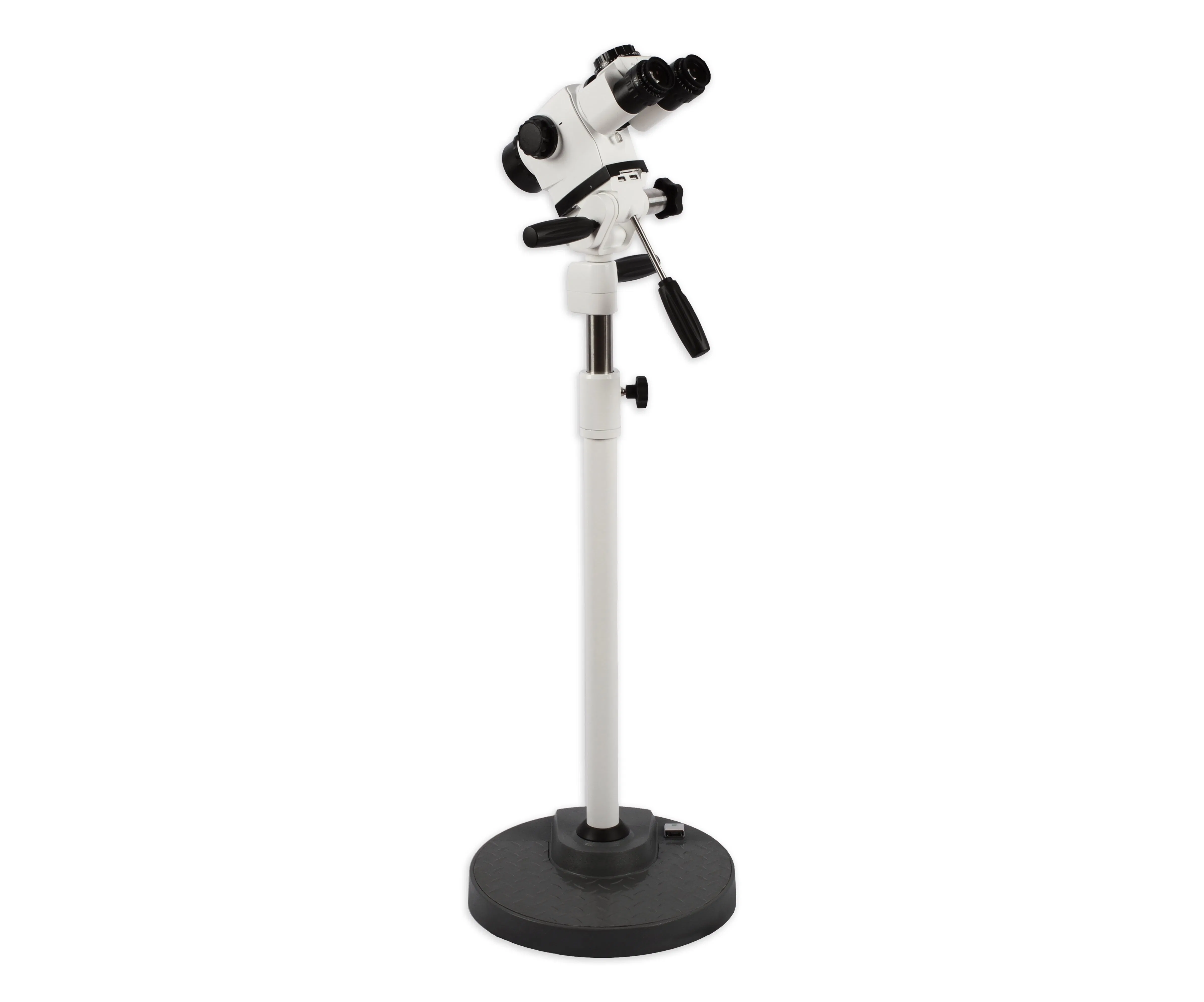

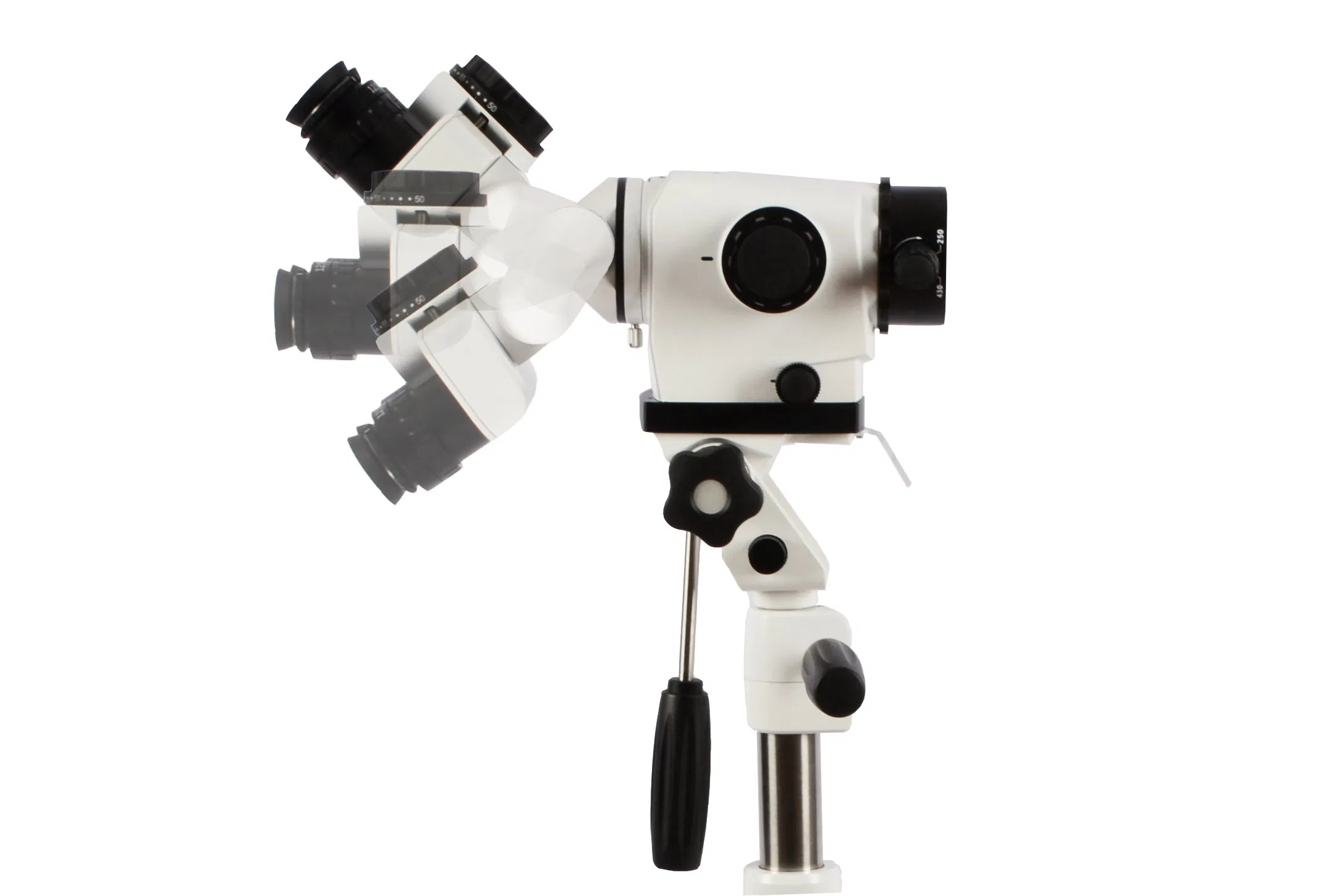

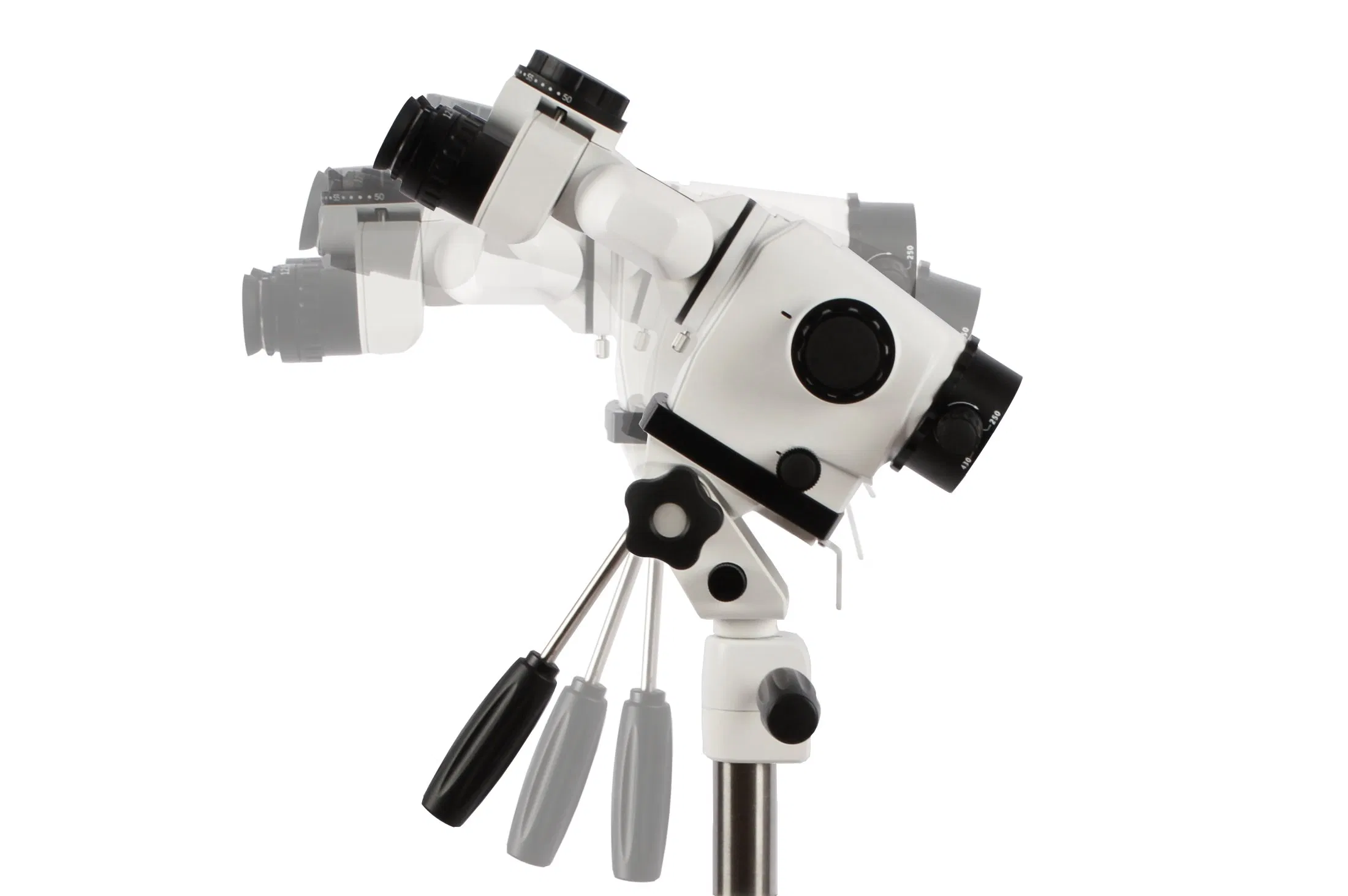

AC-3000 Optical Colposcope with Build-in Camera and Orange and Green Filter

1 / 5

AC-3000 Optical Colposcope with Build-in Camera and Orange and Green Filter

Customization:	Available
Transport Package:	Carton
Specification:	1050450480mm

Send Inquiry

Product Description

Basic Information

Model NO.AC-3000

OriginChina

HS Code9018909919

Production Capacity500 Pieces/ Year

Product Overview

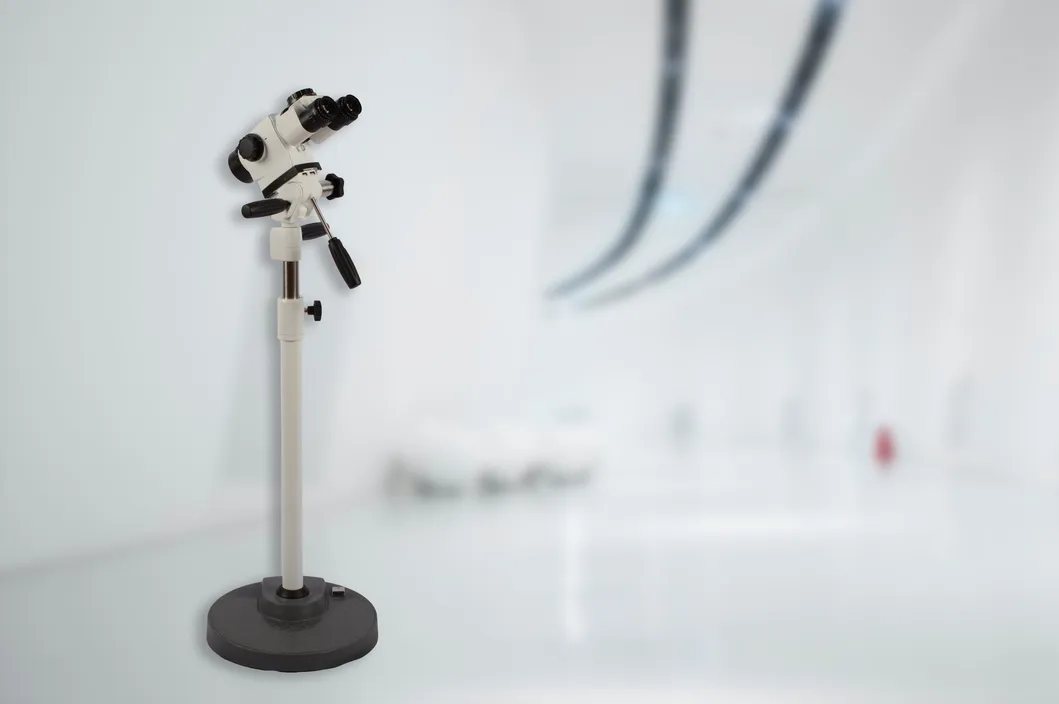

AC-3000 Series Optical Colposcope

Five Core Features

Manual 5-step magnification system
250-430mm Variable objective lens
Integrated high-performance 4K camera
Advanced lighting: Blue, Green, Natural White, and NoGlare modes
Precise horizontal adjustment function

Optics & Lens System

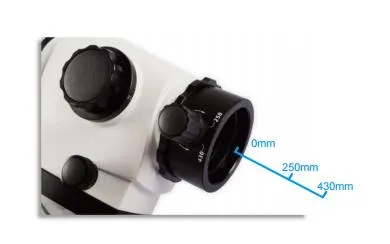

Variable Objective Lens (250-430mm)

Super wide working distance: 250-430mm
Optional 300mm objective lens available

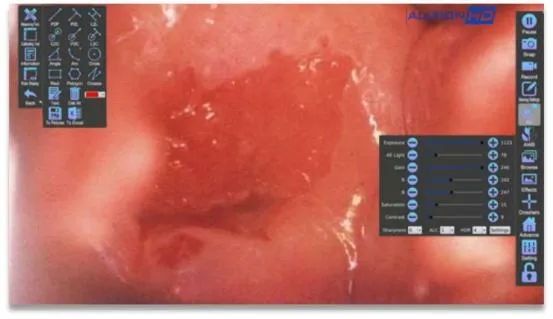

Integrated 4K Digital Imaging

Photograph & Video Recording	Freeze Frame Function
Mouse Operated Interface	Real-time Image Labeling
USB Storage Support	Instant Playback & HDMI Output

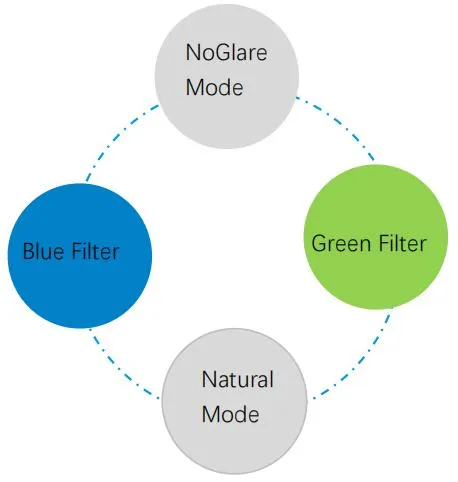

Advanced Visualization Modes

NoGlare Mode / Laser Filter

Ergonomic Adjustments

Horizontal and Base Customization

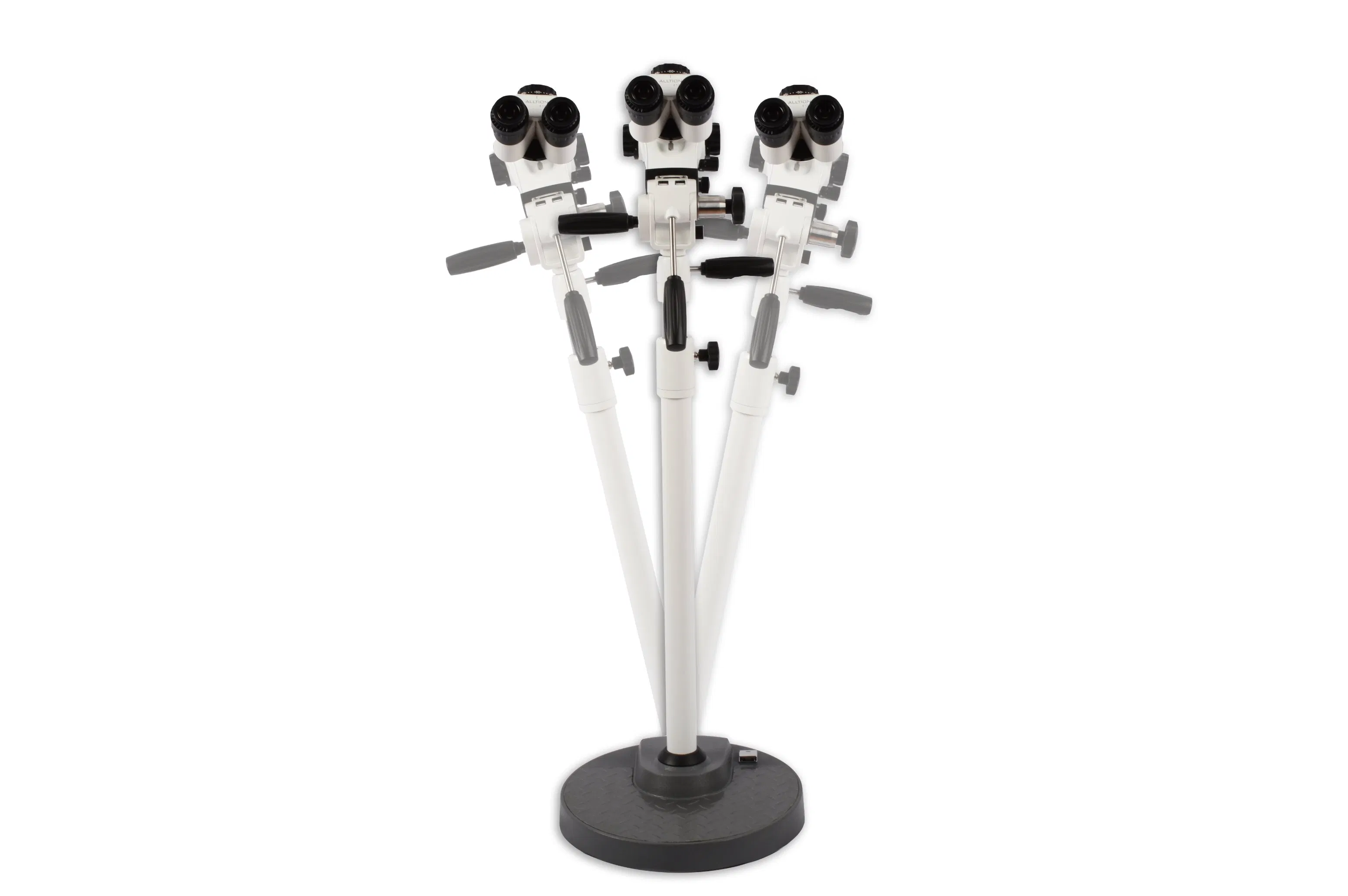

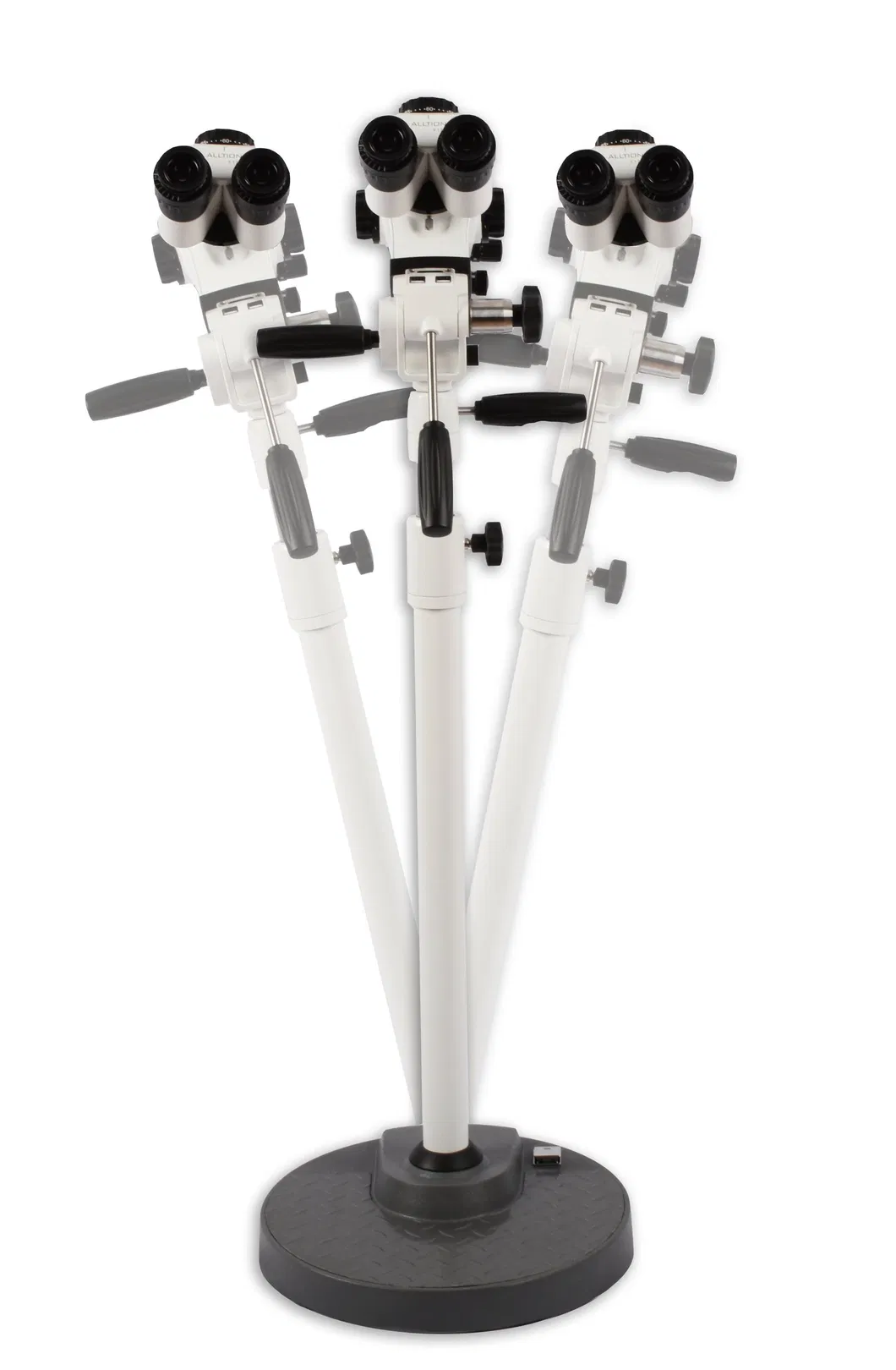

Horizontal Adjustment

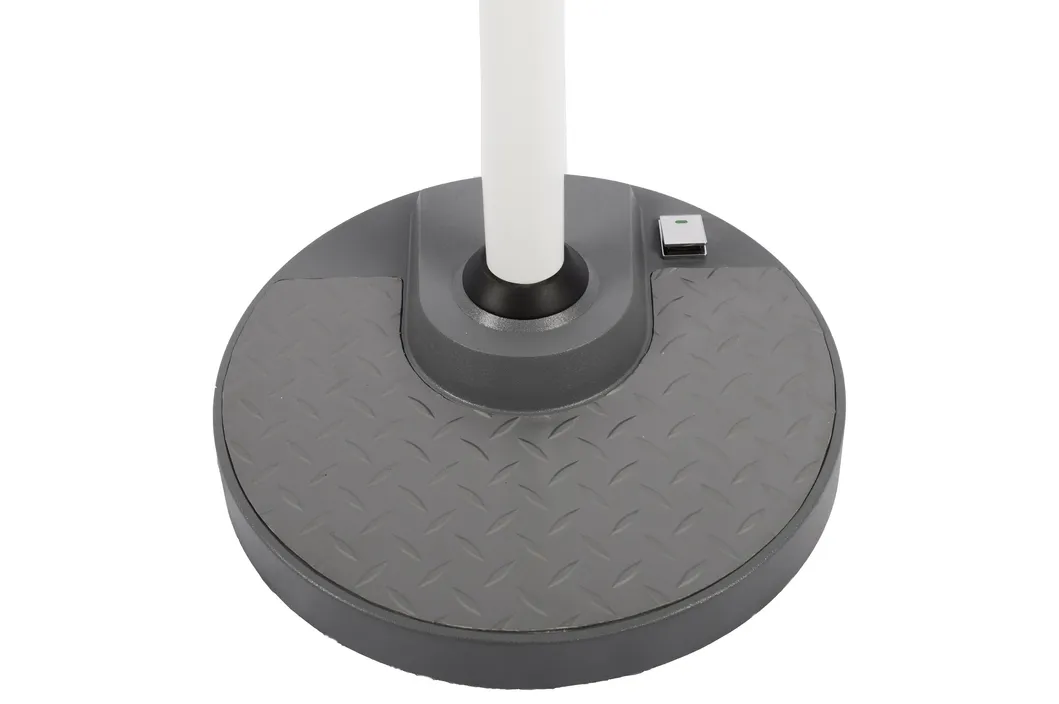

Tilting Base

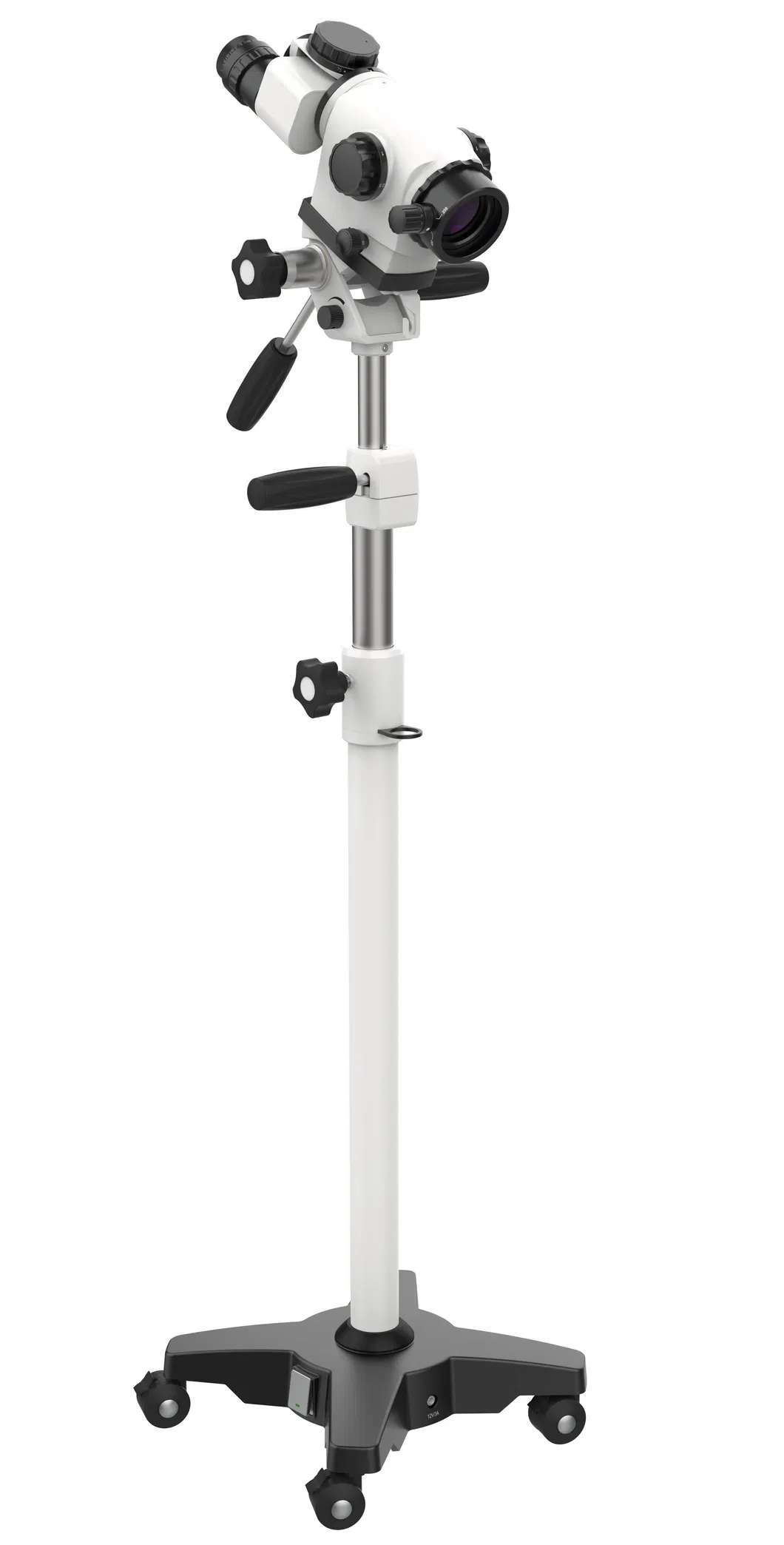

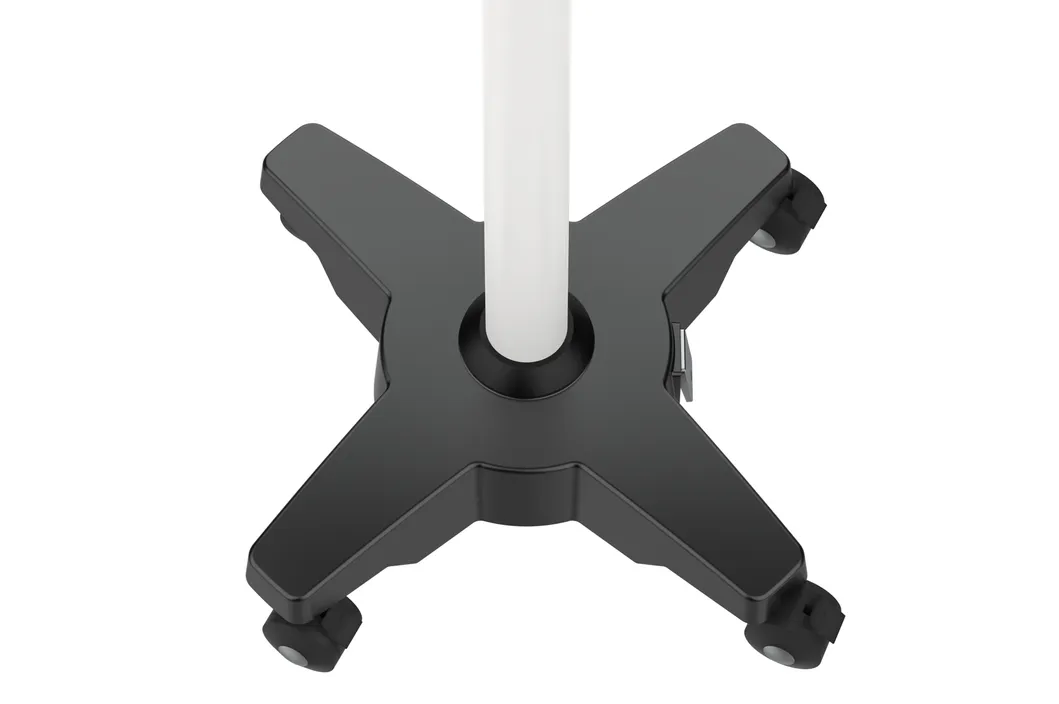

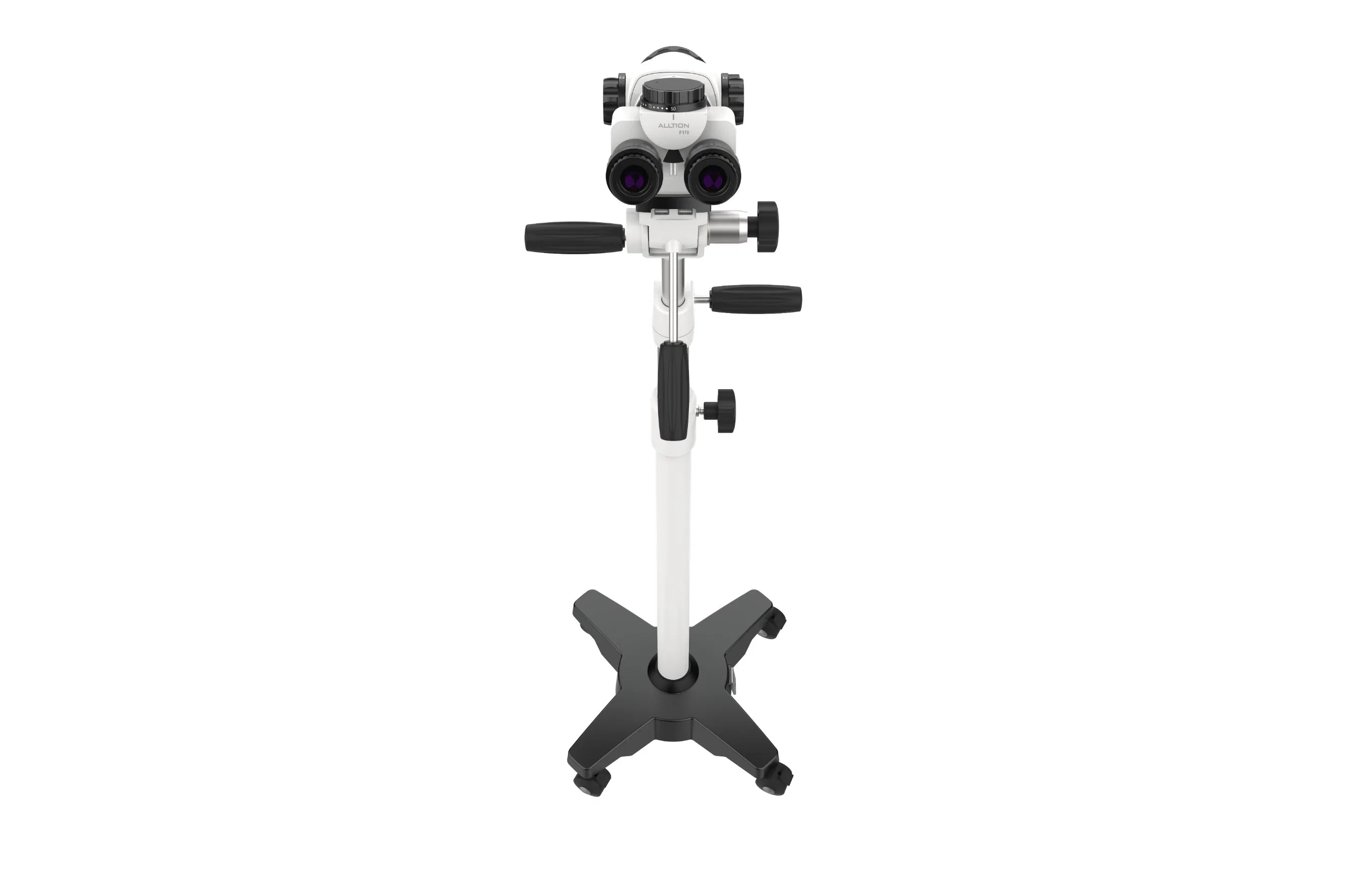

Rolling Base

Main Specifications

Feature	Technical Specification
Magnification	Manual 3-step or 5-step magnification
Objective Lens	Standard 300mm; Optional 250-430mm Variable
Binocular Options	45° / Straight / 0-180° Inclined with PD adjustment
Interpupillary Distance	50mm - 75mm
Eyepiece	Standard 12.5X/18mm; Optional 10X/21mm or 25X/11mm
Illumination	Built-in LED, Ra≥85%, 5700k, up to 60,000 LUX
Filter Modes	NoGlare, Blue filter, Green filter, Polarization
Camera	Built-in 4K Camera (SONY CMOS)

4K Camera Technical Data

Sensor Type	SONY high-performance, low-noise CMOS
Resolution	4K (3840*2160)
Output Interfaces	HDMI 1.4 x1, USB 2.0 x2
Storage Formats	JPG (Picture), MP4 (Video) - Support FAT32/exFAT/NTFS
Camera split ratio	2:8
System Settings	Horizontal/Vertical flip, 11 Languages, HDR, Detail enhancement

Frequently Asked Questions

Q1: What are the magnification options for the AC-3000 series? A: The AC-3000 series offers both manual 3-step and manual 5-step magnification options to suit different clinical requirements.

Q2: Can I adjust the working distance during an examination? A: Yes, with the optional variable objective lens, the working distance can be adjusted between 250mm and 430mm, providing significant flexibility.

Q3: What imaging functions does the built-in 4K camera support? A: The built-in SONY CMOS camera supports high-definition 4K photography, 1080P video recording, image freezing, playback, and direct storage to USB flash disks.

Q4: What filters are integrated into the system? A: The system includes a NoGlare mode, Blue filter, and Green filter to help clinicians visualize tissue structures and vascular patterns more clearly.

Q5: Which languages are available in the system settings? A: The system supports 11 languages, including English, Chinese, German, French, Spanish, Italian, Portuguese, Swedish, Japanese, Russian, and Polish.

Q6: What types of bases can be used with this colposcope? A: Users can choose between a Tilting Base or a Rolling Base for optimal mobility and positioning in various clinical environments.
