Basic Information
Certification
CE, ISO13485, RoHS
Group
Doctor, Nurse, Medical Worker, Female Patient
Product Description

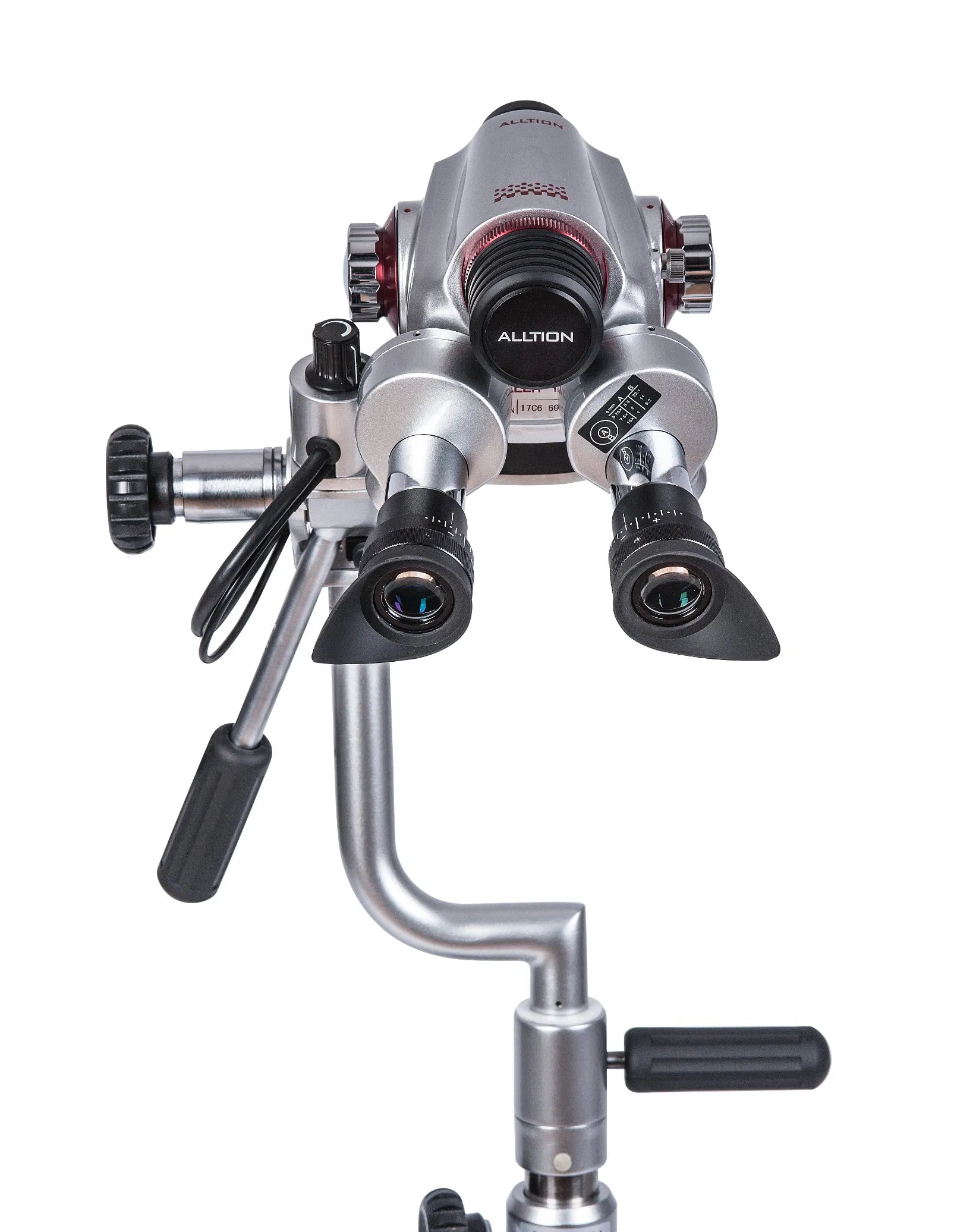

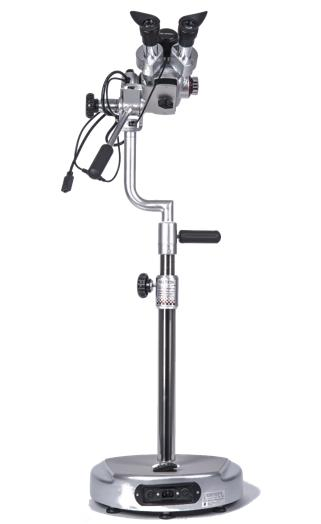

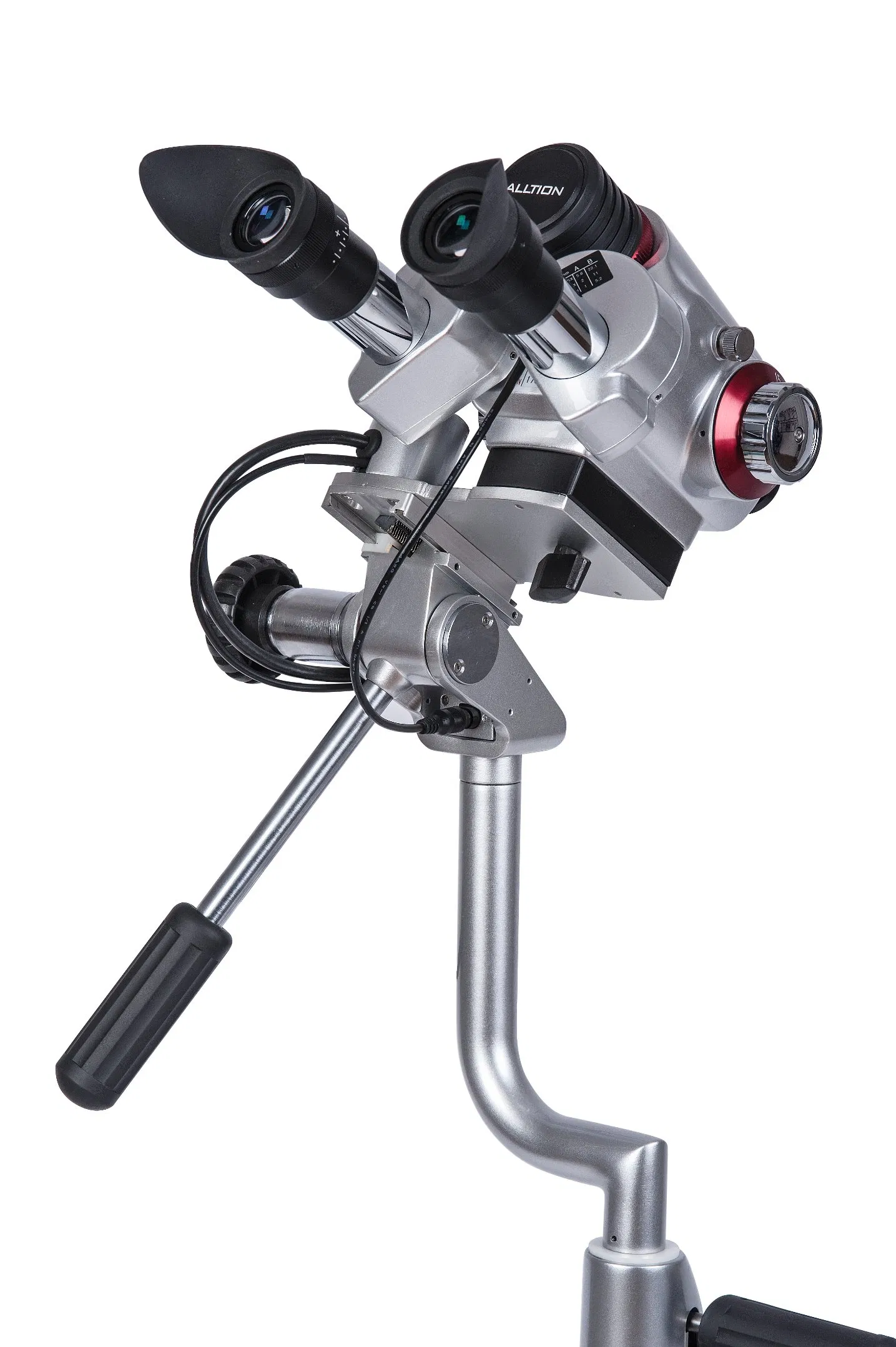

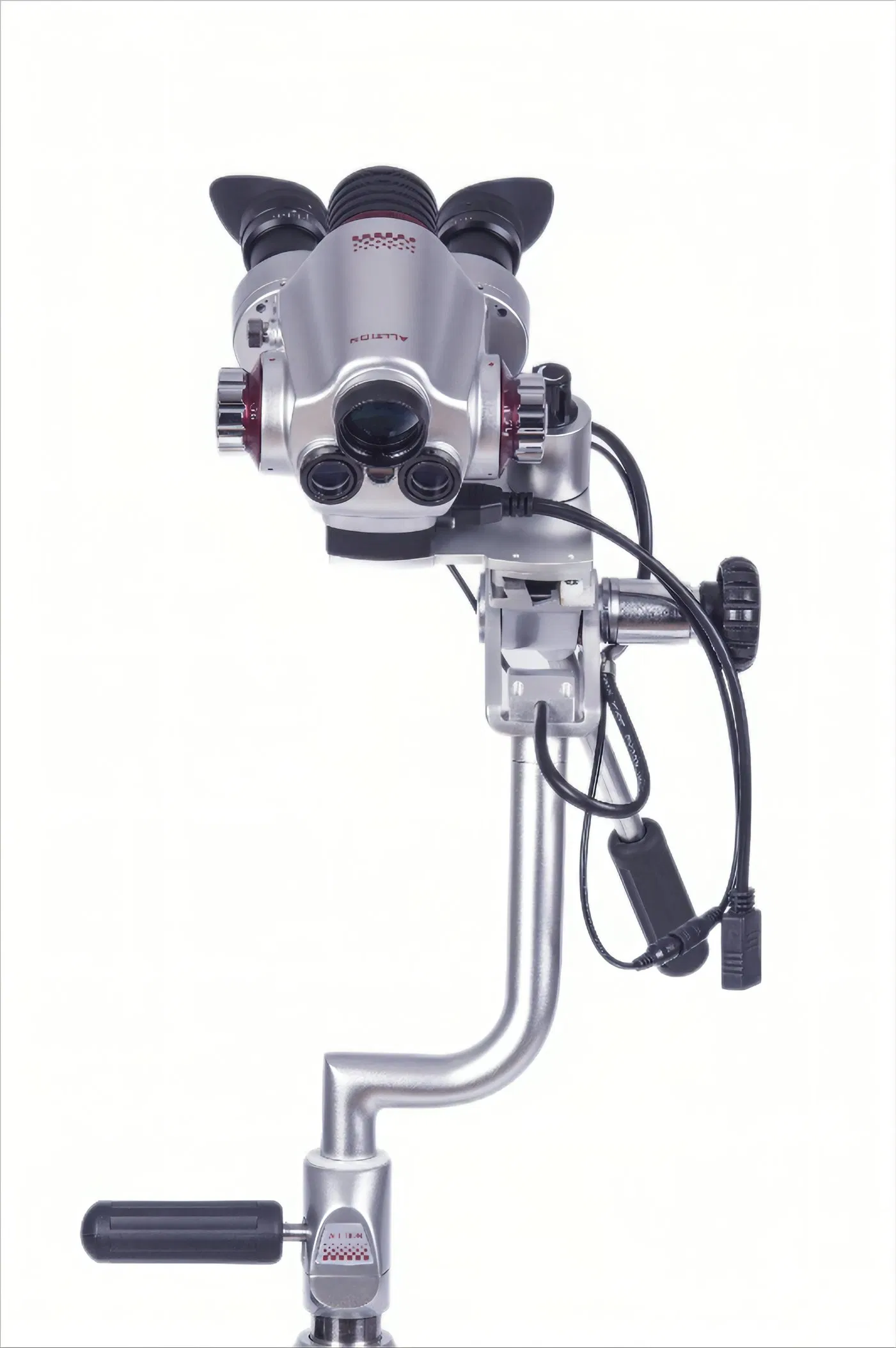

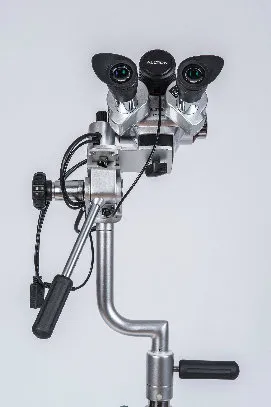

The AC-2000DA Series Colposcope is based on a proven platform with hundreds of units sold worldwide. It represents a perfect combination of classic aesthetics and modern technology. This brand-new colposcope features fashionable, dynamic, and elegant curves, designed by award-winning designer Mr. Zhang Xun.
| 🏆 2007 RED DOT concept design award: Best of Best |
| 🏆 2008 RED DOT concept design award |
| 🏆 2009 IF product design award gold |
Features and Benefits
🔹
Direct Access Features: No blockage for easier access during procedures.
🔹

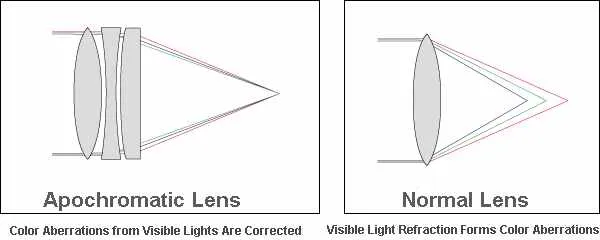

Apochromatic Optic Design: Provides superior color correction and clarity.
✔ 3-step Magnification and/or Single Magnification options.
✔ LED Illumination for Long Life & Low Cost.

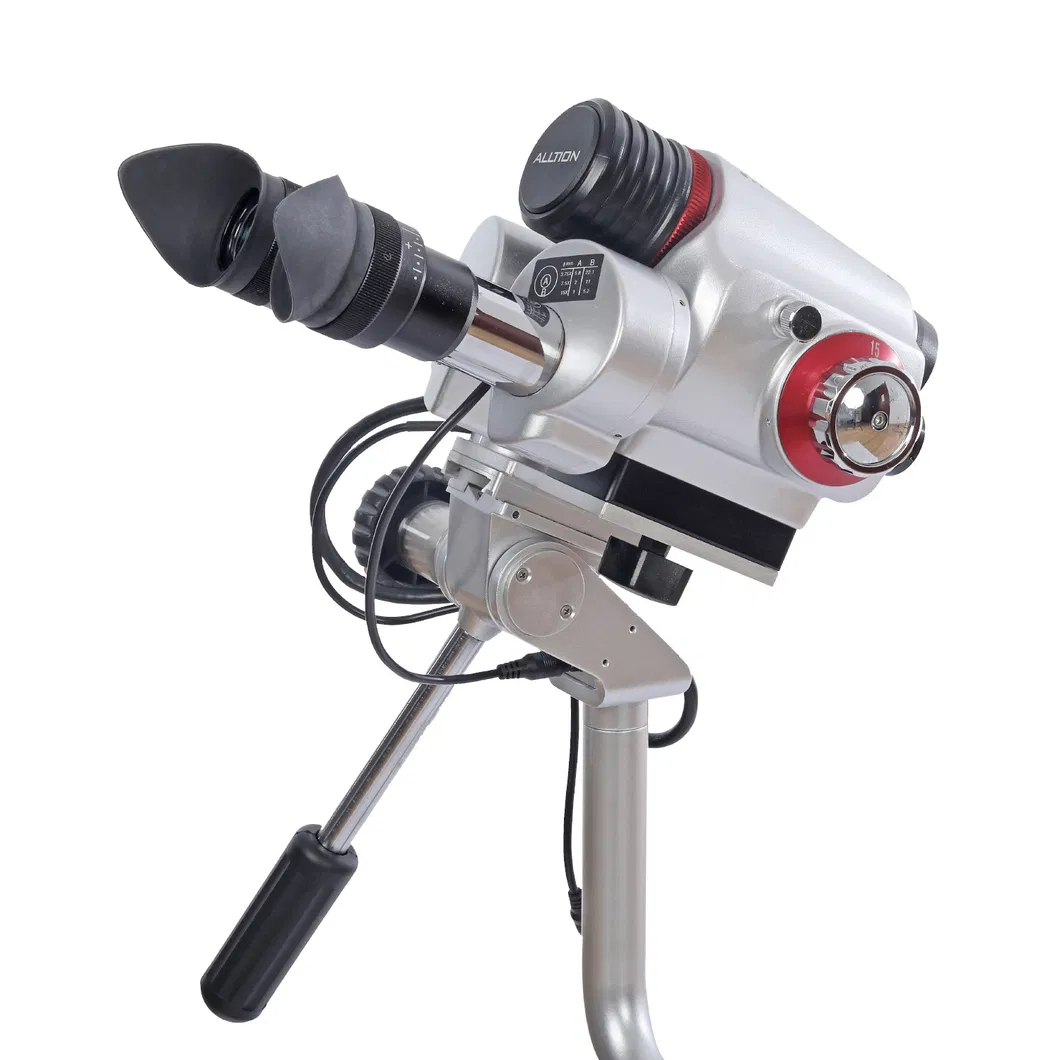

✔ Integrated Video Camera for real-time imaging.
✔ Two Optical Circles for quick measuring of tissue size.
✔ Integrated Green Filter for enhanced contrast.

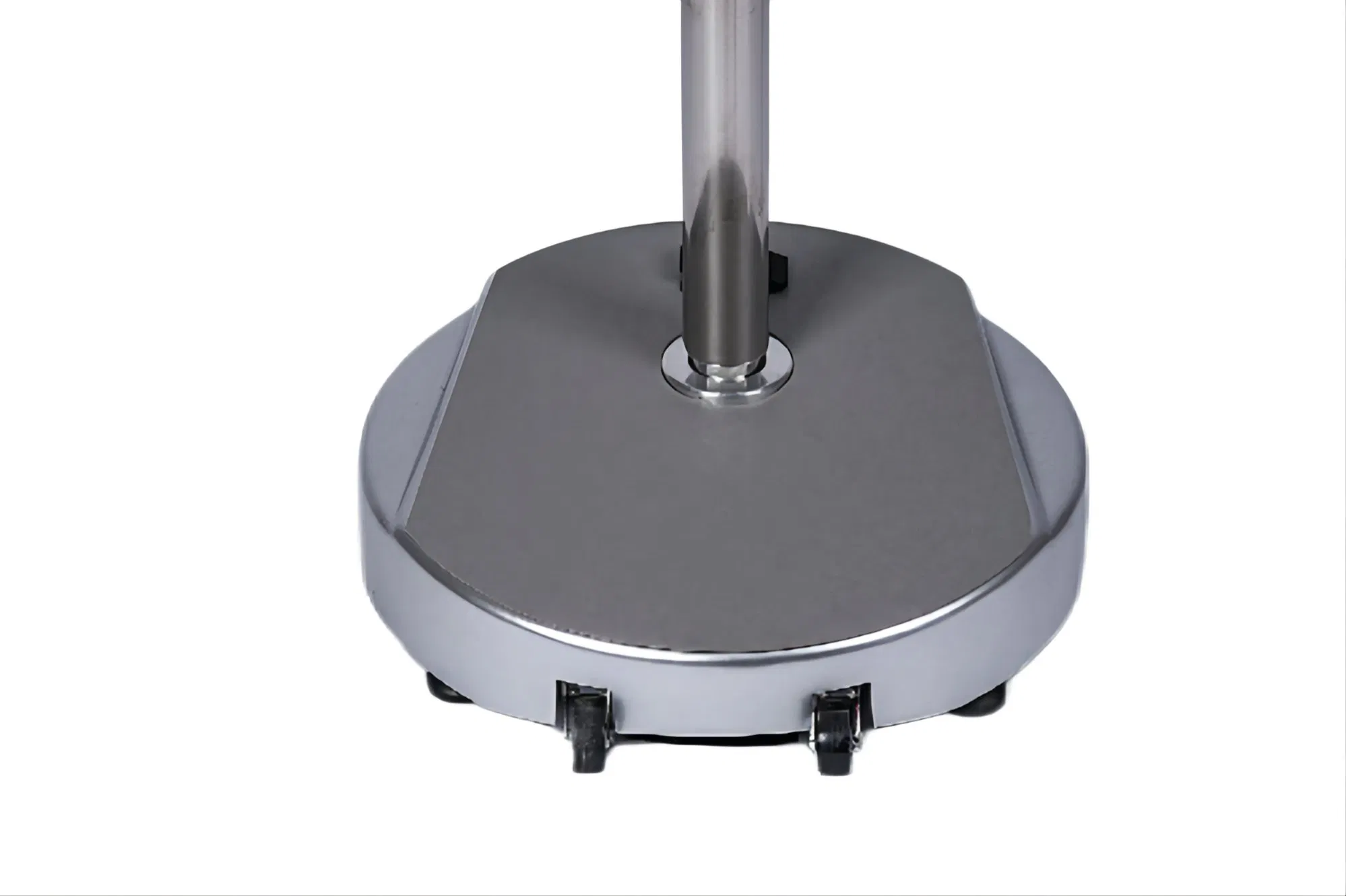

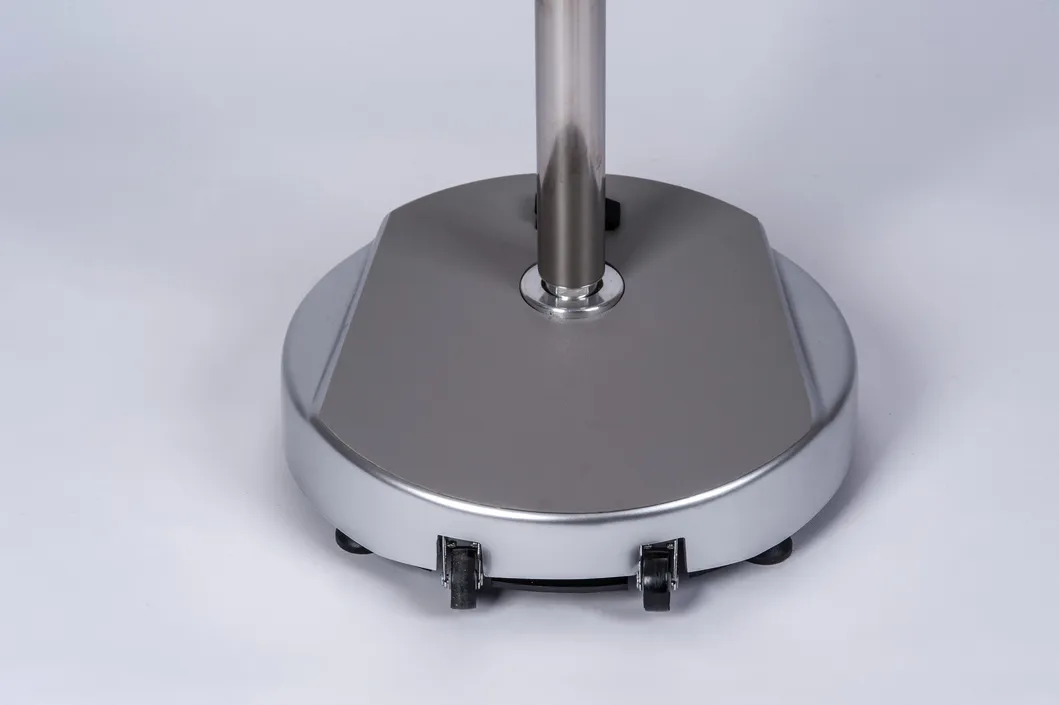

✔ Compact, Light Weight Base with 5 Wheels for stability and easy maneuverability.
✔ Ergonomic Design for long-time precision operation comfort.
Technical Specifications
1. Magnification: 3.75x, 7.5x, 15x (3-step models) or 7.5x (single magnification).
2. Focal Length: 300mm.
3. Field of View: 79mm, 39mm, 19mm diameter (model dependent).
4. Depth of Field: 4.5mm, 1.13mm, 0.76mm (model dependent).
5. Light Intensity: > 30,000 LUX.
6. Eyepiece: 16.7x individually adjustable.
7. Measurement: Right eyepiece with built-in measuring circles.
8. Contrast: User-selectable built-in green filter.
9. Height: Adjustable working height from 975mm to 1135mm.
10. Output: 1080P Full HD Real-time image output.
* Subject to changes in design and scope of delivery as a result of ongoing technical development.
Frequently Asked Questions
🔹 What are the magnification levels of the AC-2000DA?
The 3-step magnification models offer 3.75x, 7.5x, and 15x levels, while single magnification models are fixed at 7.5x.
🔹 Does the colposcope support high-definition video?
Yes, it features an integrated video camera capable of 1080P Full HD real-time image output.
🔹 How powerful is the illumination system?
The unit utilizes an adjustable LED illumination system with a light intensity of over 30,000 LUX.
🔹 What is the adjustable height range of the unit?
The working height can be adjusted between 975mm and 1135mm using gross and fine height adjustment handles.
🔹 Are there any specific features for measuring tissue size?
Yes, the right eyepiece is equipped with built-in dual circles specifically designed for measuring the size of the observed area.
🔹 What certifications does this medical device hold?
The AC-2000DA series is certified with CE, ISO13485, and RoHS standards.
