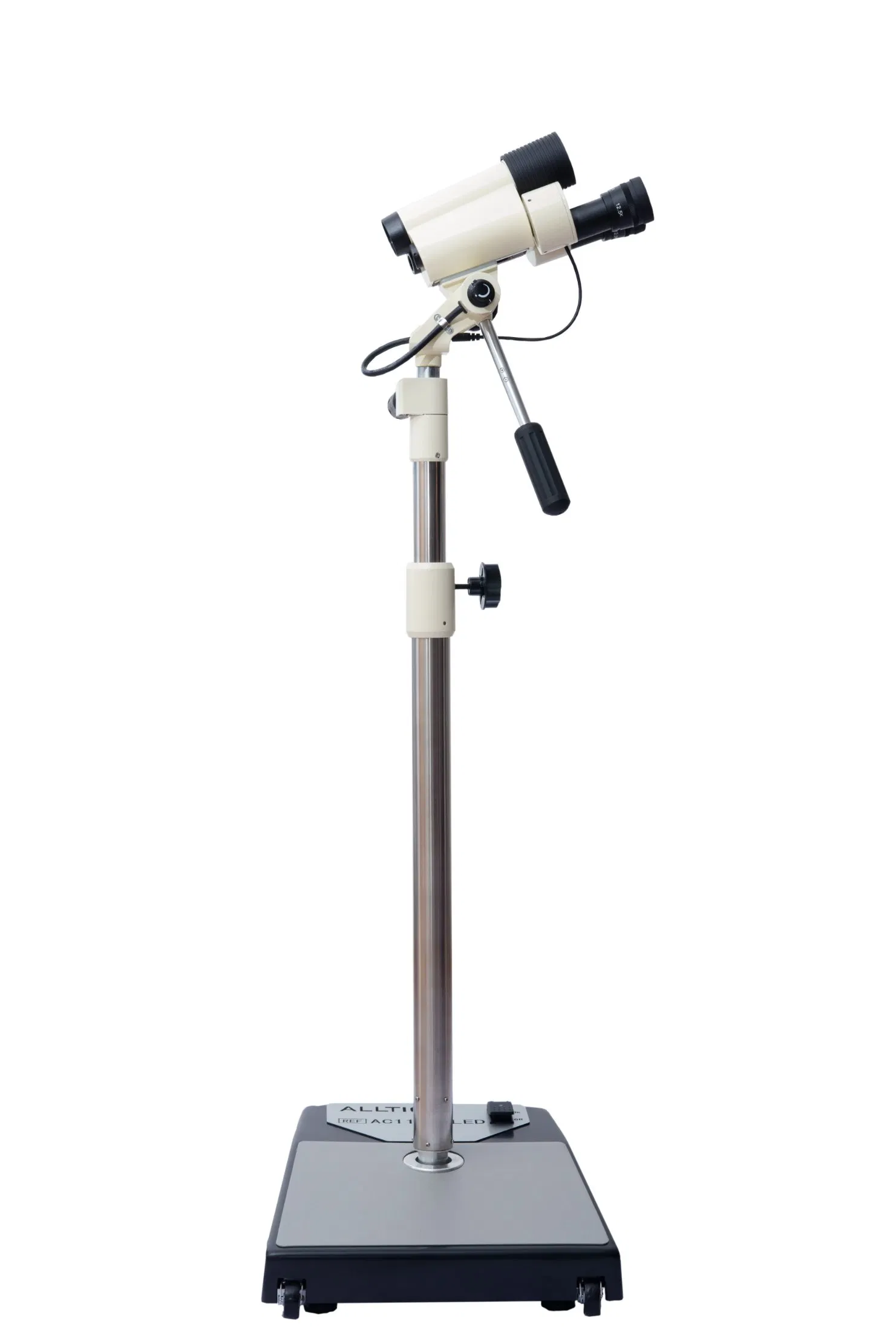

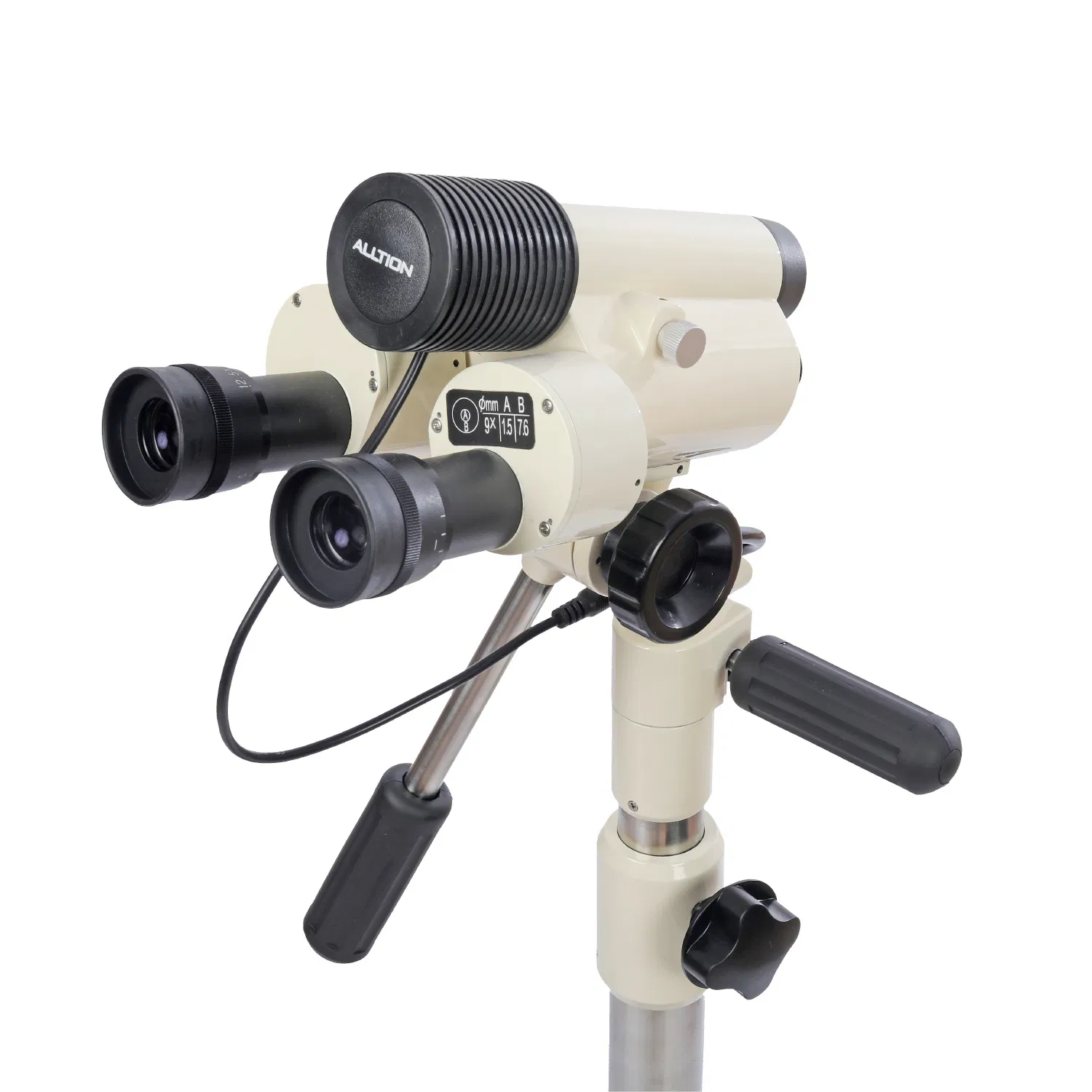

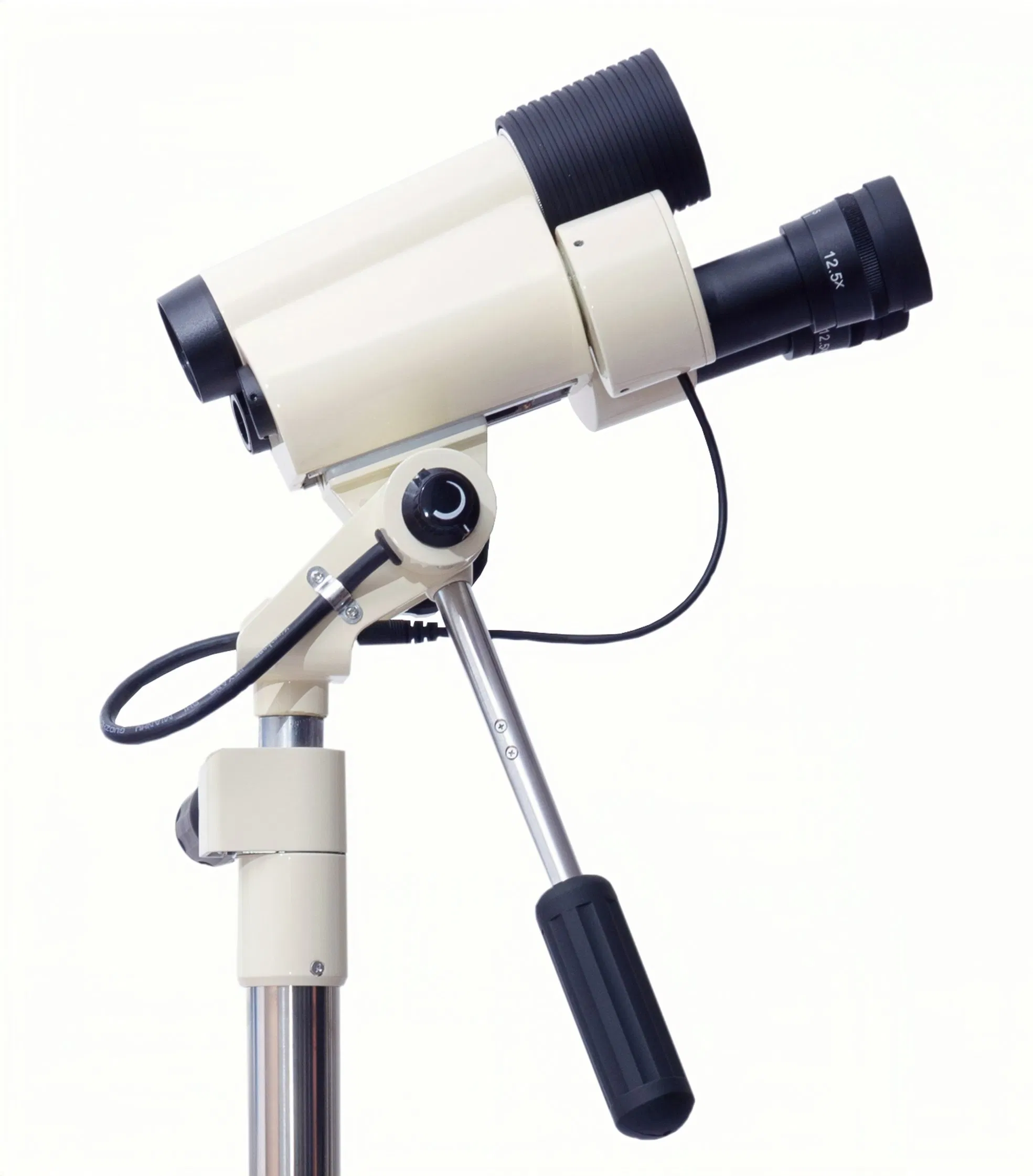

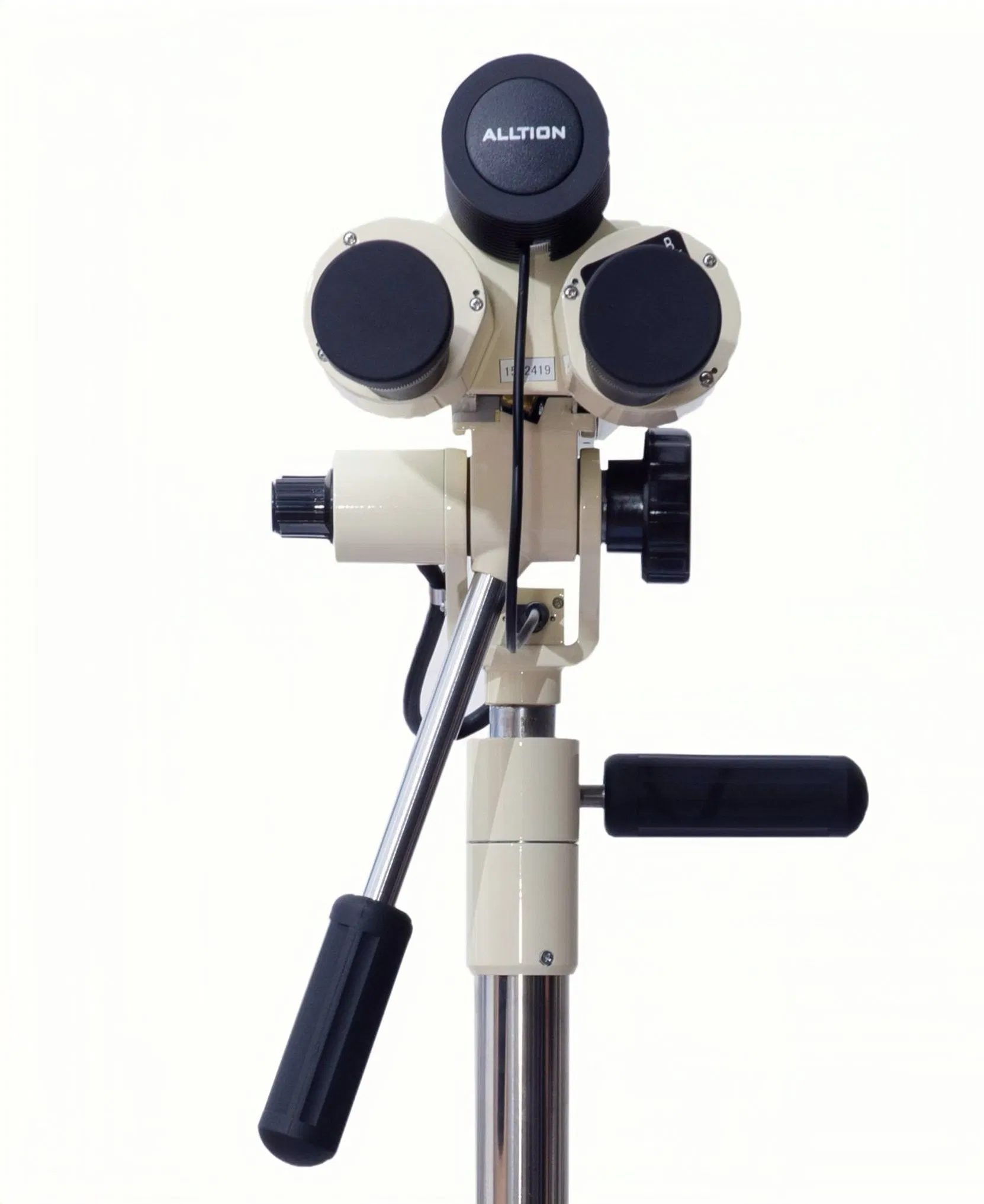

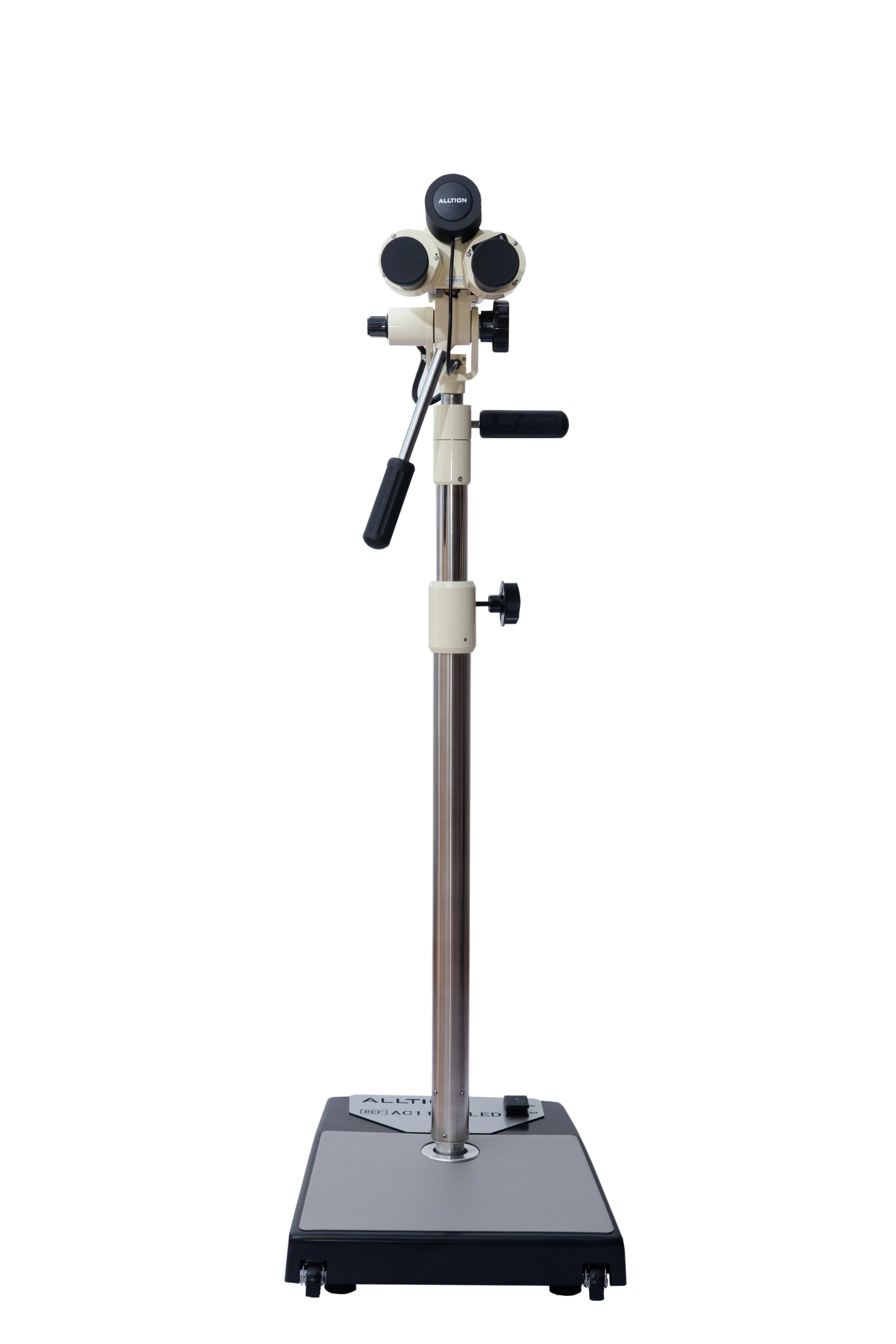

AC-1000 Optical Colposcope with LED for Gynecology

Customization:	Available
Classification:	Colposcope
Type:	Gynecology Colposcope

Basic Information

Model NO.

AC-1000

Certification

CE, FDA, ISO13485, RoHS

Group

Doctor, Nurse, Medical Worker, Female Patient

Package

Carton

Origin

China

HS Code

90189090

Product Description

The colposcope comes with an LED Cold Light Source giving white color illumination. This is a high quality and most basic colposcope that offers excellent optics to your practice affordably. This unit is compact, light-weight with a roller base for easy maneuverability.

The units are examined and calibrated prior to shipping, so the device arrives completely assembled and ready to use. All you have to do is plug it in.

Key Features

Precision computer designed total magnification 9x
316mm focal length
Field of View: 22mm dia.
Depth of Field: 8mm
Light intensity: >25,000 LUX
Individually adjustable eyepiece 12.5x (diopters)
Right eyepiece built-in measurement circles
Built-in rheostat for brightness adjustment
User-selectable built-in green filter
Easily changeable LED bulb
Working Height: 838mm to 1194mm
Two (Gross/Fine) focus adjustment handles
Two (Gross/Fine) height adjustment handles
Universal Teflon® ball-joint for 360° motion
Completely assembled and ready for use
Main Power Supply: 90V-240V

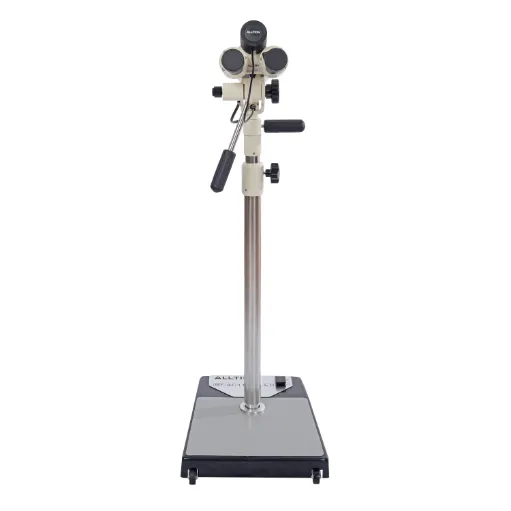

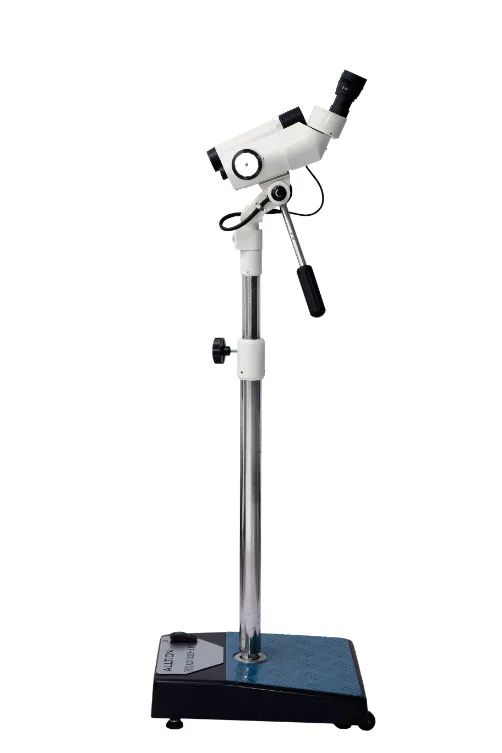

Product Visuals

Subject to changes in design and scope of delivery and as a result of ongoing technical development.

Frequently Asked Questions

What is the magnification power of this colposcope? The unit features a precision computer-designed total magnification of 9x.

Does the device require assembly upon arrival? No, the unit arrives completely assembled and calibrated. It is ready for use immediately after plugging into a power source.

What type of illumination does it use? It uses an LED Cold Light Source providing white illumination with an intensity of over 25,000 LUX.

Is the working height adjustable? Yes, the working height is adjustable from 838mm to 1194mm using Gross and Fine adjustment handles.

Does it include any filters for examination? Yes, it features a user-selectable built-in green filter to enhance contrast during examinations.

What is the movement range of the head? The universal Teflon® ball-joint allows for smooth and easy 360° motion.
