a-S104b Hospital Gynecological Examination Chair

Customization: Available
Material: Metal
Using Ambient: Hospital

Product Description

Basic Specifications

Model NO. A-S104B
Certification CE, FDA, ISO
Condition New
OEM Available
Purpose Gynecological Examination
Capacity 200 Sets/Month
HS Code 94029000
Origin China

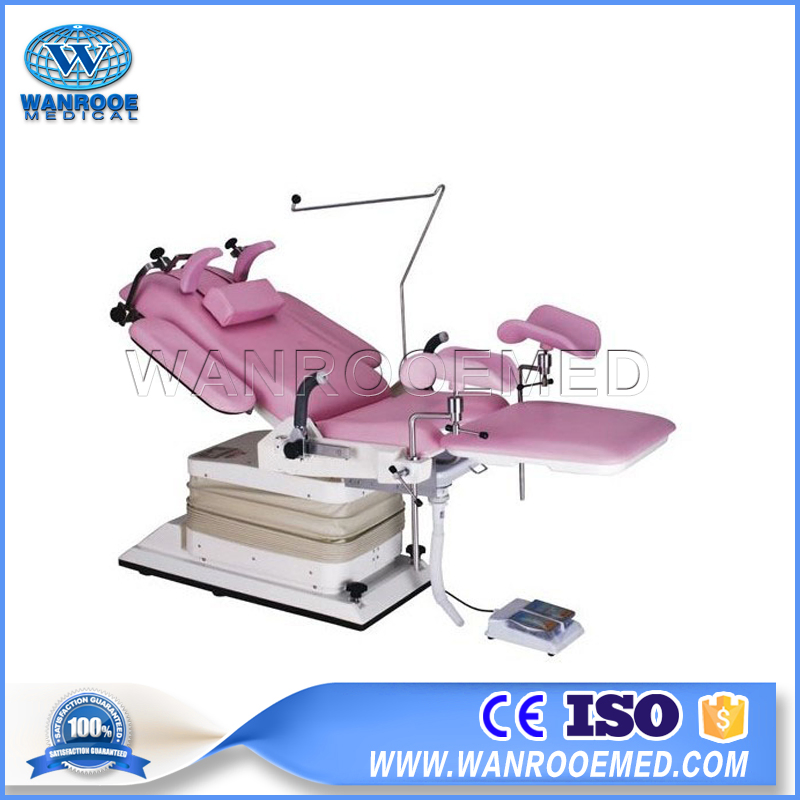

A-S104B Hospital Gynecological Examination Chair

A-S104B Gynecological Examination Chair Main View

The A-S104B is a universal electric gynecology chair designed for hospitals and clinics to perform various gynecological examinations, diagnoses, and surgical operations. The patient's position can be adjusted according to practical needs, with a specific focus on operator comfort and ease of use through auto-adjustment functions.

  • Premium Components: Equipped with imported motor brands for enhanced stability and precision.
  • Adjustable Height: Ultra-wide elevation range from 600mm to 920mm for optimal ergonomics.
  • Dual Control: Electric controlled elevation and gas spring controlled back section.
  • Superior Comfort: Mattress made from Japanese Achilles PVC material with mould forming technology.
  • Hygiene Design: Integrated disposal paper holder under the mattress and an engineering plastic filth basin.
  • Mobility: Integrated wheels at the base for easy movement and secure fixing.

Technical Specifications

Table Top DimensionLength 1700mm, Width 550mm
Table Height Range600mm ~ 920mm
Back Section TurningDown ≥ 8°, Up ≥ 60°
Seat Section TurningDown ≥ 8°, Up ≥ 16°
Arm Rest Swing Out0 ~ 90°
Handle Slide Distance140mm
Filth Basin Slide Distance150mm
Power SupplyAC 220V 50HZ

Standard Accessories

Accessory Name Quantity
Foot switch1 set
Armrest1 pair
Leg holder1 pair
Handle1 pair
Filth basin1 pc
Assist platform1 unit
Anesthesia frame1 pc
Pillow1 pc

Product Details

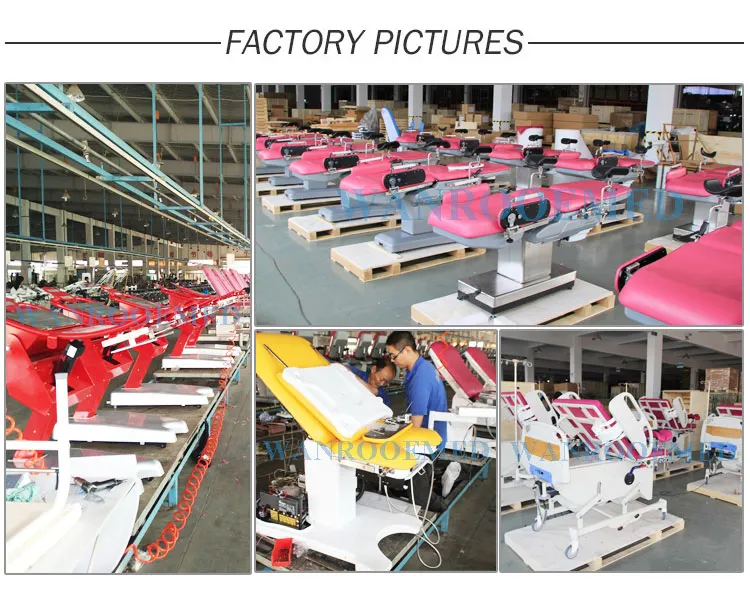

Detailed view of A-S104B components

Frequently Asked Questions

What is the height adjustment range of the A-S104B chair?
The chair features an ultra-wide electric elevation range, adjustable from 600mm to 920mm, allowing doctors to choose the most suitable height for procedures.
What materials are used for the mattress?
The mattress is made from high-quality imported Japanese Achilles PVC material, designed with mould forming for durability and patient comfort.
Are the adjustment motors reliable for clinical use?
Yes, the main motors are from imported brands, ensuring more stable, precise, and quiet operation during gynecological examinations.
Does the chair include a filth basin?
Yes, it comes equipped with an engineering plastic filth basin that has a slide distance of 150mm for convenient disposal and cleaning.
Is the back section also electrically controlled?
While the main elevation is electric, the back section uses a gas spring control system for smooth and reliable angle adjustments.
