Overview & Basic Info
Item
Portable Digital X-ray Machine
Application
Human and Animal
X Ray Tube Focus
1.8*1.8mm
Kv Adjustable Range
40kv~110kv
Ma Adjustable Range
32mA~100mA
Mas Adjustable Range
0.32-315mas
Production Capacity
500 Pieces/Month
Product Description

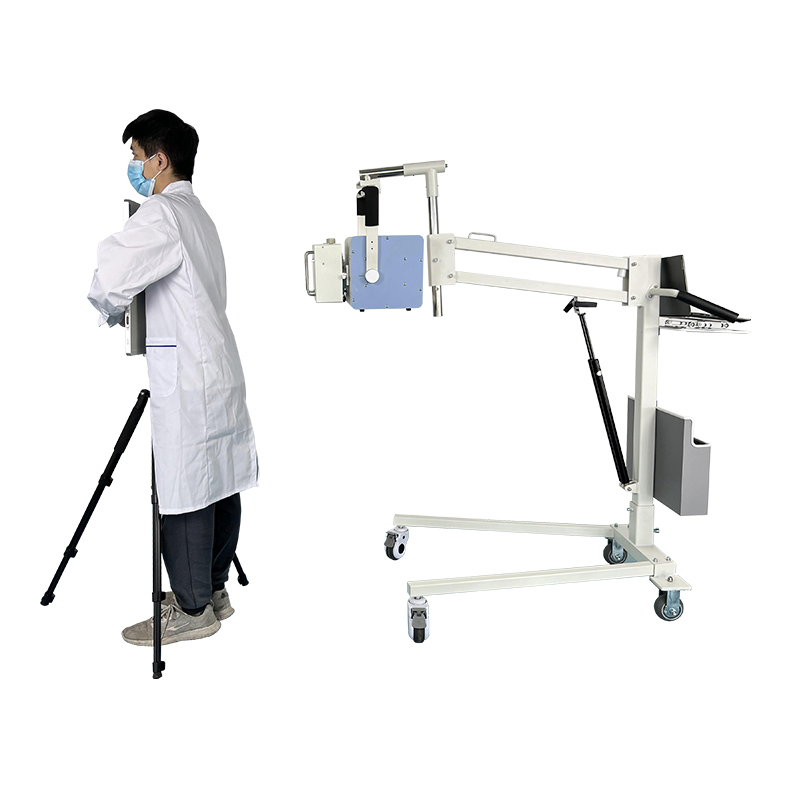

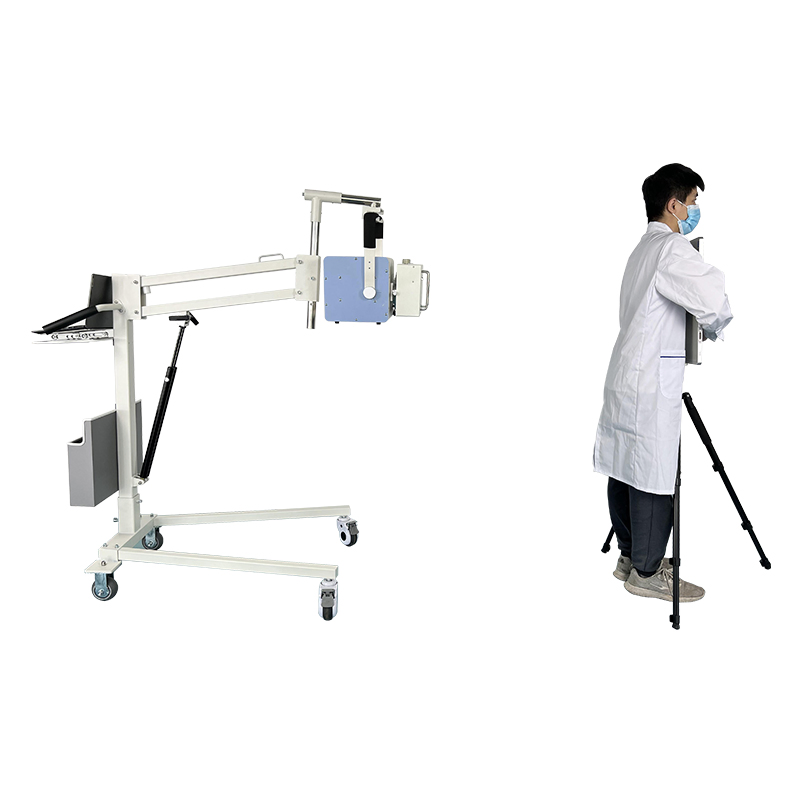

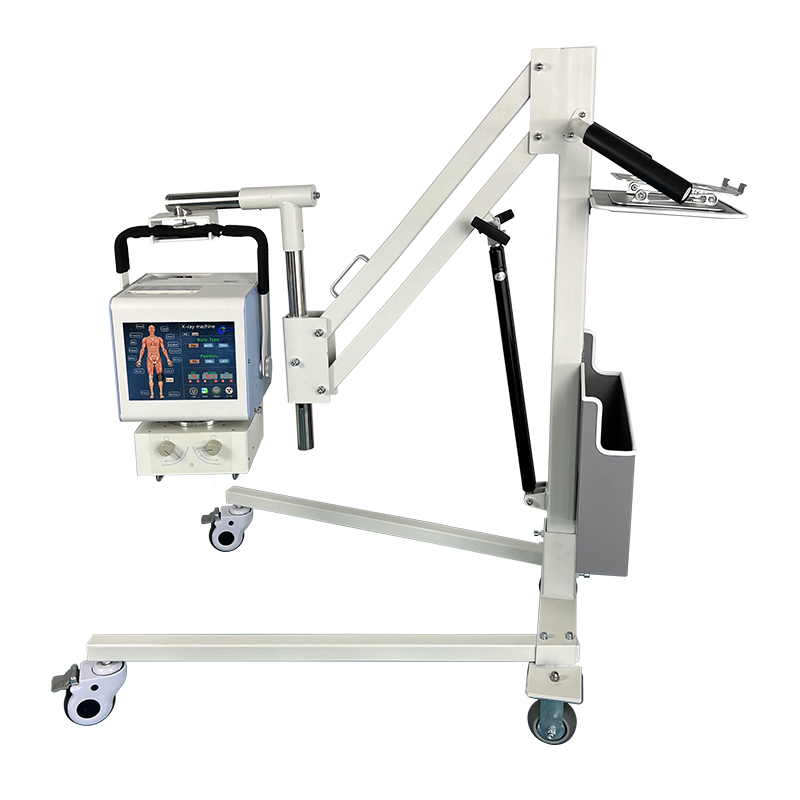

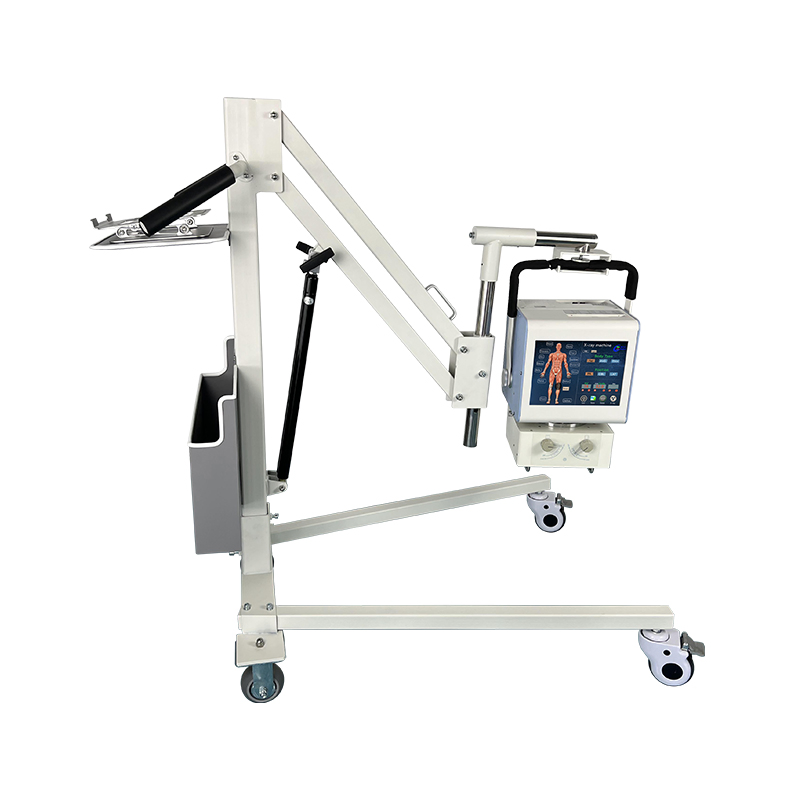

Portable Digital X Ray
Model Number: MX-DR050B12
Our 5KW portable digital x-ray equipment provides superior image quality compared to standard 100 mA machines. It is significantly lighter and features a large touch screen for easy operation. This system is highly versatile, suitable for both medical and veterinary applications.
-
✔
Simple & light structure for maximum portability.
-
✔
LED digital display for clear monitoring.
-
✔
Anatomical memories for rapid selection programs.
-
✔
Double-loop high precision control mode.
-
✔
Self-protection & auto-diagnosis for safety.
Technical Specifications
| Power | 5kw |
| Power Supply | Single-phase 220V 50/60Hz |
| Working Frequency | 30kHz |
| mA Range | 32-100mA |
| mAs Range | 0.32-315mAs |
| KV Range | 40-110kv |
| Exposure Time | 0.01-6.3s |
| Tube Focus | 1.8*1.8mm |
| Anode Heat Capacity | 42kHU |

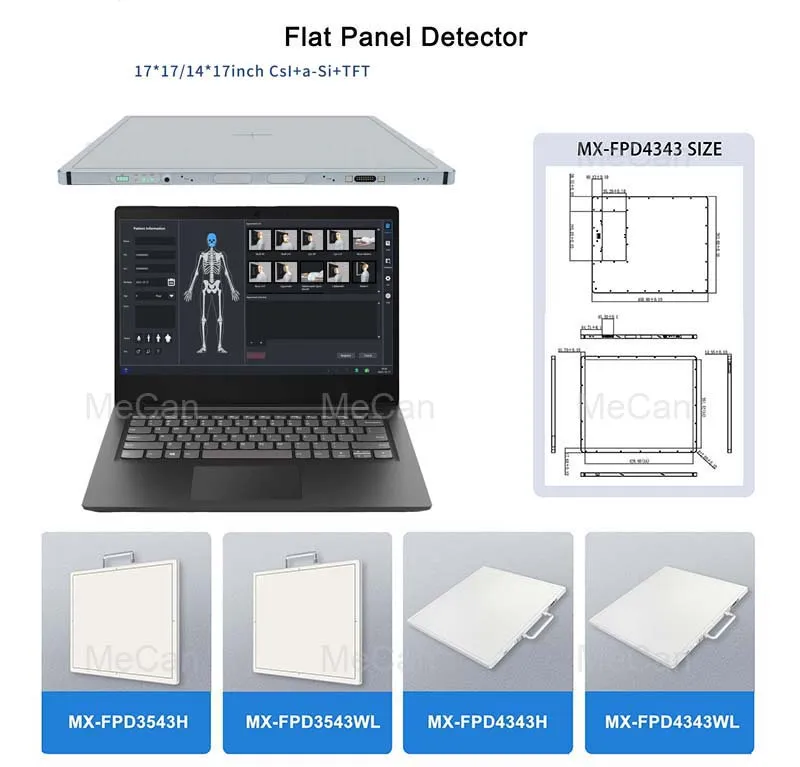

| Flat Panel Detector |
| Image Size | 17*17 inch (14*17 option) |
| Pixels Matrix | 140μm |
| A/D Conversion | 16bits |
| Spatial Resolution | 3.6 Lp/mm |
| System & Software |
| Software | Professional Imaging Software |
| Computer | R5-5500U/8G/512G |

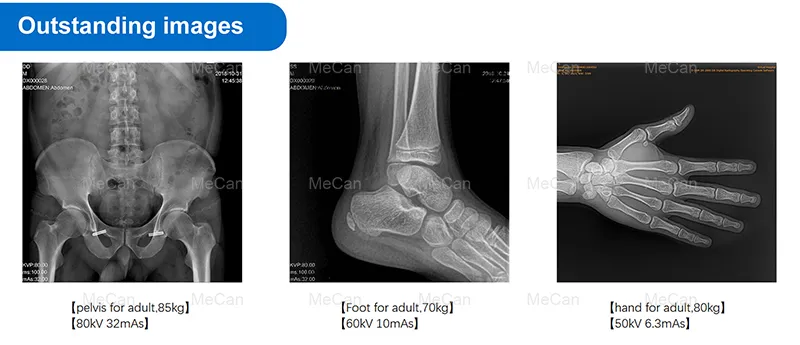

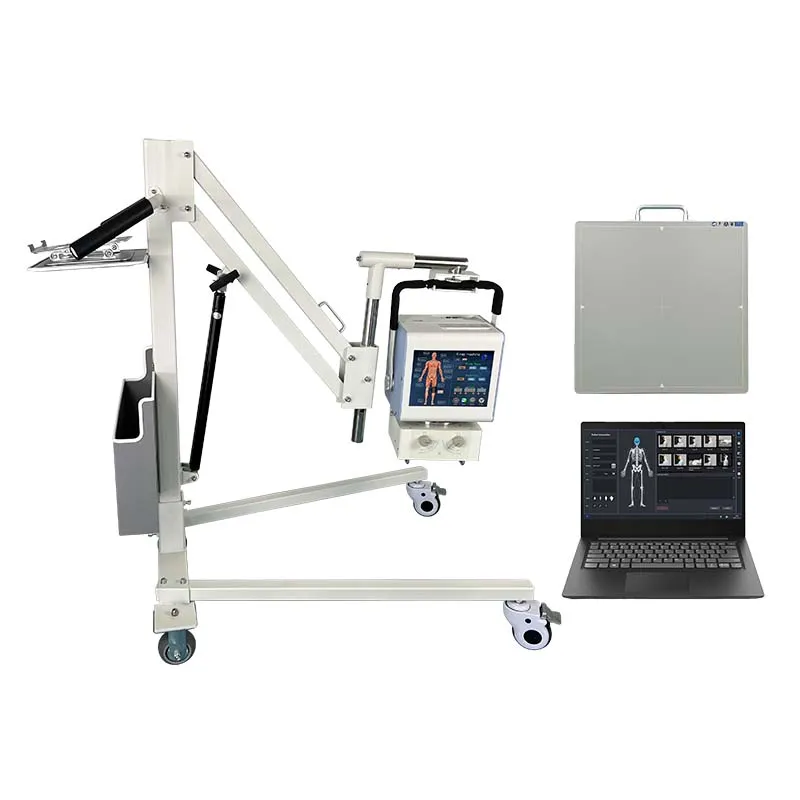

DR System & Product Gallery

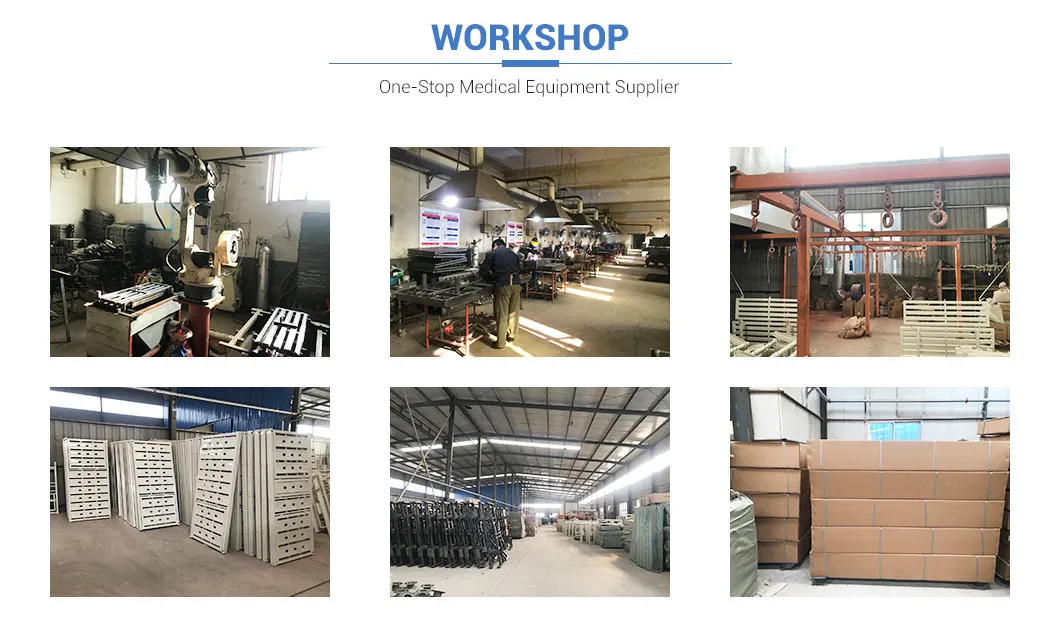

Production & Quality Control
Frequently Asked Questions (FAQ)
What is the primary application of this portable X-ray machine?
This 5kw portable digital X-ray machine is designed for both human medical diagnostics and veterinary use, providing high-quality imaging for various settings.
Does the system include self-protection features?
Yes, the machine comes with built-in self-protection and auto-diagnosis functions that activate whenever a malfunction occurs to ensure user and patient safety.
What are the key technical advantages of the MX-DR050B12 model?
Key advantages include its light and simple structure, high precision control in tube voltage and current, and an LED digital display for ease of use.
What type of detector and software are used in this DR system?
The system features a high-resolution flat panel detector with a 16-bit A/D conversion and is equipped with professional imaging software running on a powerful R5 processor computer.
What is the kV and mA range of the portable X-ray unit?
The kV adjustable range is 40kv to 110kv, and the mA range is 32mA to 100mA, allowing for precise exposure control.
Is the machine easy to transport for field use?
Absolutely. The machine is designed specifically for portability with a lightweight structure, making it ideal for mobile clinics or remote locations.
