400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit
400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit
400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit
400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit
400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit
1 / 5
400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit
400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit
400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit
400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit
400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit

400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
BM-400W-005
Group
Adult, Children
Warranty
1 Year
N.W.
7kg
G.W.
12kg
Transport Package
Carton Box, 1PC/CTN
Specification
550*460*270mm
Origin
China
HS Code
9018909919
Production Capacity
50000PCS
⚡

400W High Frequency Electrosurgical Cautery Unit

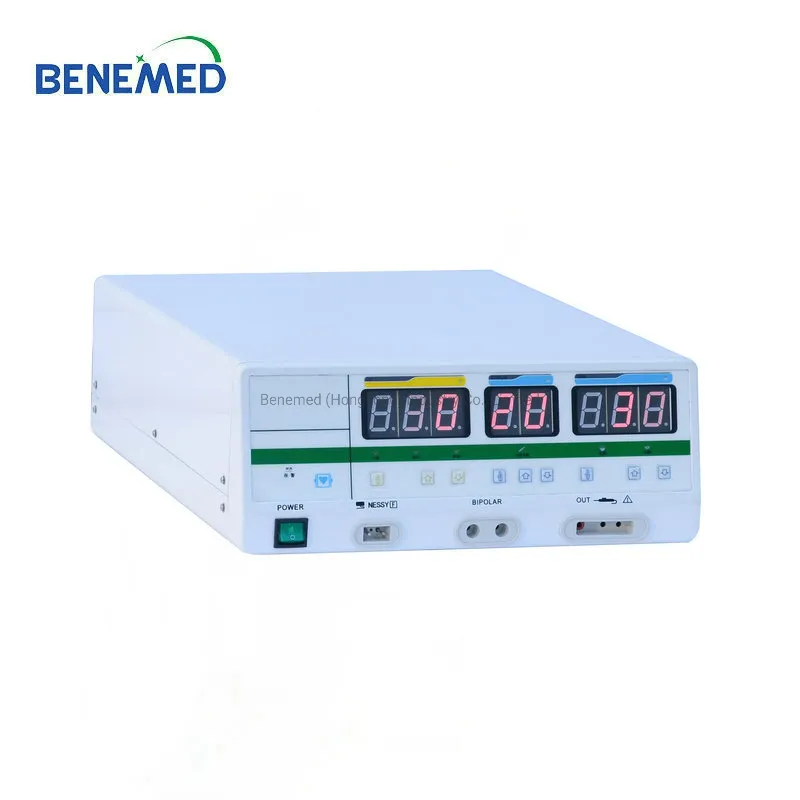

Electrosurgical Unit Main
Technical Parameter - BM-400W-005 Output Modes
Mono Cut Cutting: 400W (load 500Ω)
Blend 1: 200W (load 500Ω)
Blend 2: 150W (load 500Ω)
Mono Coag Soft Coag: 120W (load 500Ω)
Strong Coag: 100W (load 500Ω)
Bipolar Bipolar Coag: 70W (load 200Ω)
⚙️

Functional Characteristics

1. Pure Cutting: Fine cutting effect, fresh tissue surface without scab.
2. Mixed Cutting 1: Slight coagulation effect during cutting.
3. Mixed Cutting 2: Powerful coagulation effect while cutting.
4. Soft Electrocoagulation: Deep coagulation layer, small scope, compatible with endoscopy.
5. Strong Electrocoagulation: Fast surface coagulation, larger area of action.
6. Fine Bipolar Coagulation: Rapid effect, automatic power cut-off to prevent tissue adhesion.
✅

Key Advantages

  • Memory Function: Recalls the last used power setting upon startup.
  • Safety Monitoring: Neutral electrode contact quality monitoring circuit detects effective contact area and alarms if levels drop.
  • Automatic Compensation: Ensures stable output power with minimal loss.
  • Underwater Performance: Suitable for underwater cutting and fat-rich tissue cutting.
  • Wide Compatibility: Works with argon systems, endoscopy, and hysteroscopy.
📊

Technical & Storage Parameters

Working Temp
5°C ~ 40°C
Working Humidity
< 80%
Atmospheric Pressure
86.0 - 106.0 kpa
Power Supply
220V (±22V), 50Hz (±1)
Frequency
360 - 460 kHz
Storage Temp
-40°C ~ 55°C
🏥

Applicable Departments

Operating Room, Gynecology, Orthopedics, Pediatrics, Endoscopy Room, Surgery, Burn Department, Urology, Internal Medicine, and Clinical Laboratories.

Scope: Suitable for cutting and coagulation of tissues in various operations with precise power control.

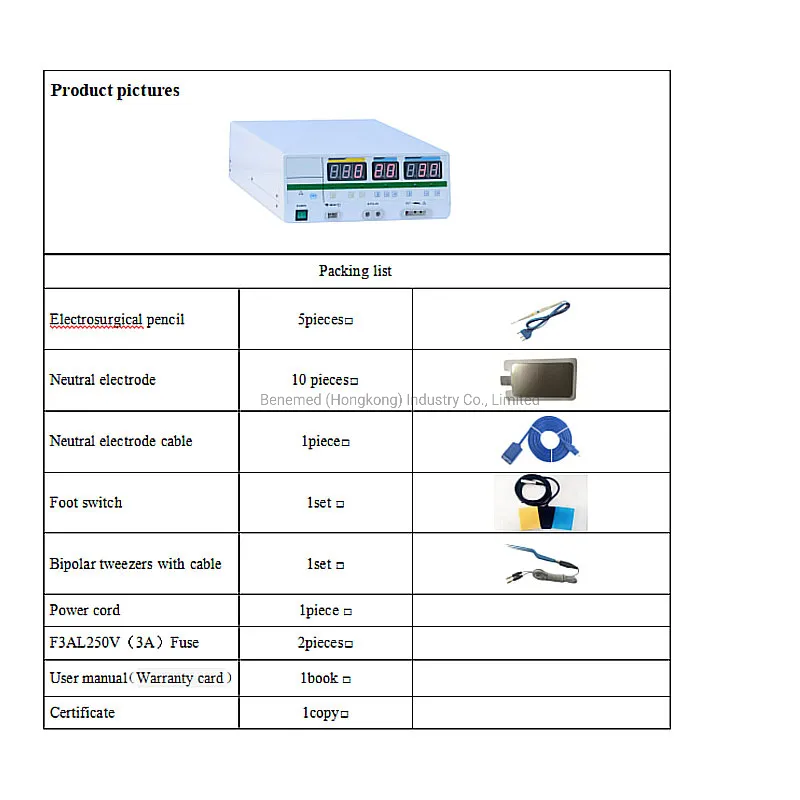

Product Detail 1
Product Detail 2

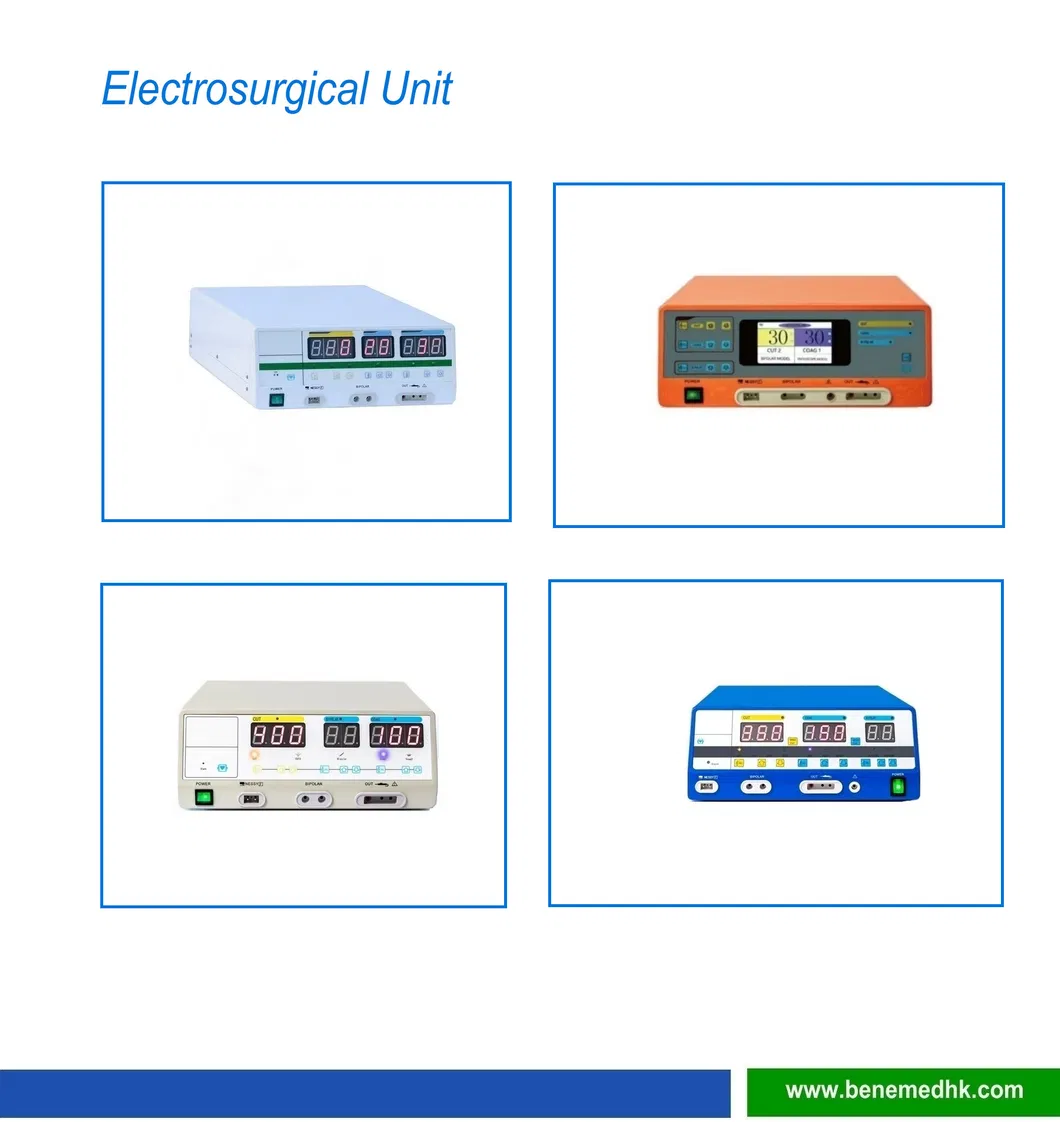

Product Detail 3
Technical Specs Diagram
Accessories Info

Frequently Asked Questions

What are the main output modes of the BM-400W-005?
The unit offers six output modes: Mono Cutting (Pure cut, Blend 1, Blend 2), Mono Coagulation (Soft and Strong), and Bipolar Coagulation.
Is the safety of the patient monitored during use?
Yes, it features a neutral electrode contact quality monitoring circuit that automatically cuts off output and alarms if the contact area drops to a dangerous level.
Can this electrosurgical unit be used in underwater surgery?
Yes, it is designed to support underwater cutting, including procedures in tissue areas with high fat content.
Does the device remember settings from the previous session?
Yes, it has a memory function that displays the last power set value when the machine is restarted.
What departments is this equipment suitable for?
It is ideal for many departments including General Surgery, Gynecology, Orthopedics, Pediatrics, Urology, and Endoscopy rooms.
What is the warranty period for this unit?
The device comes with a standard 1-year warranty.
