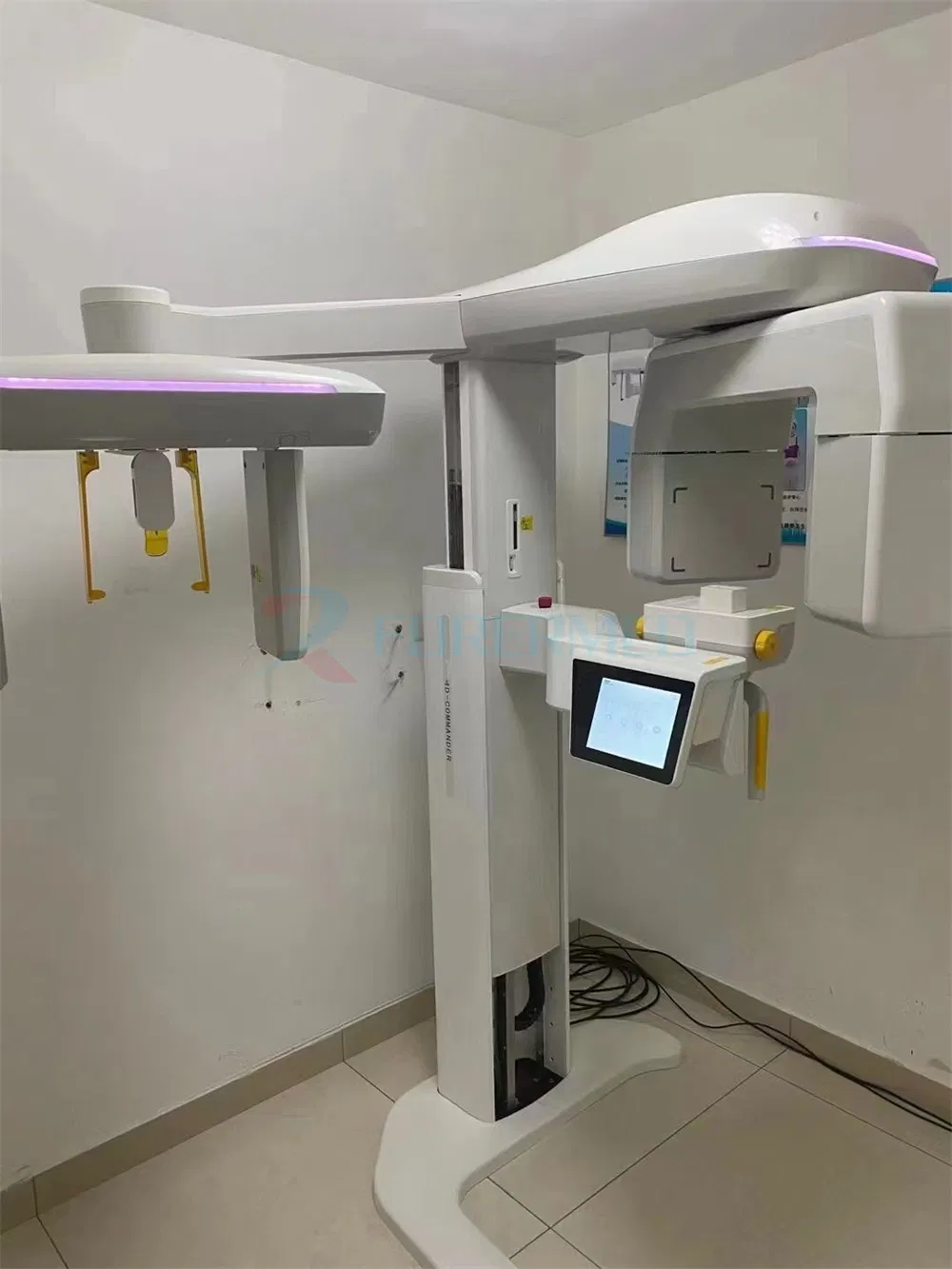

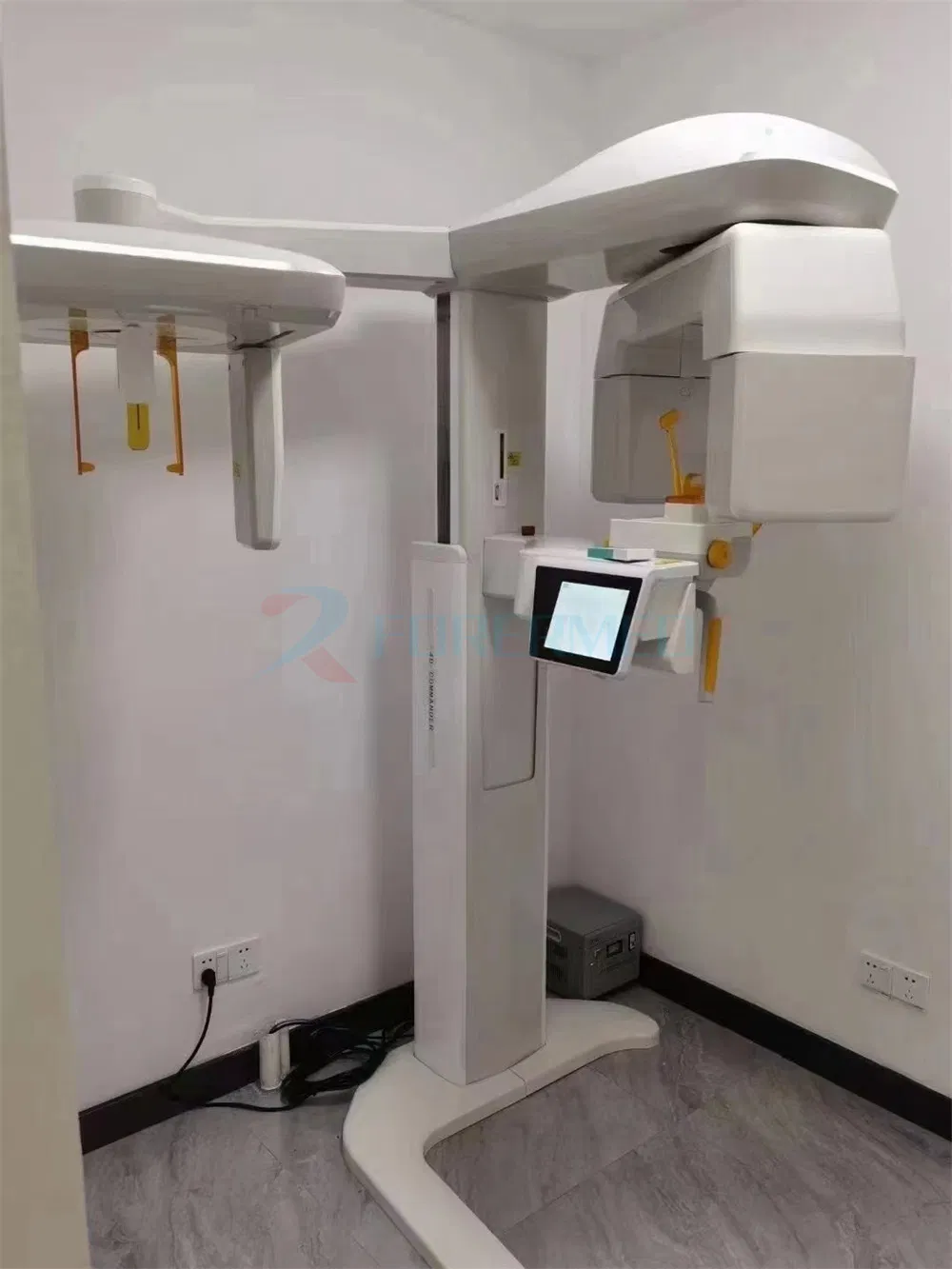

YJ-QD1610 3D Dental Panoramic X-Ray Machine CBCT Machine

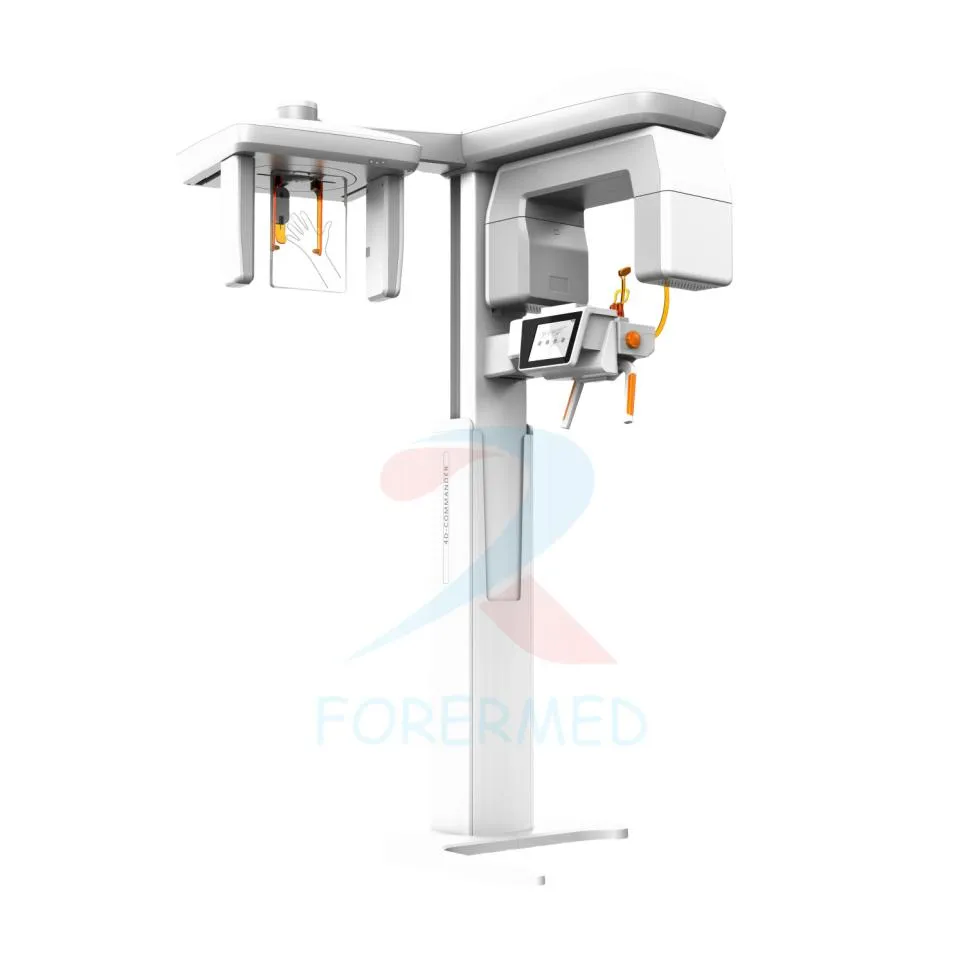

M2FoV - Variable FOV for Your Preference
Innovative user experience through human-centric design.

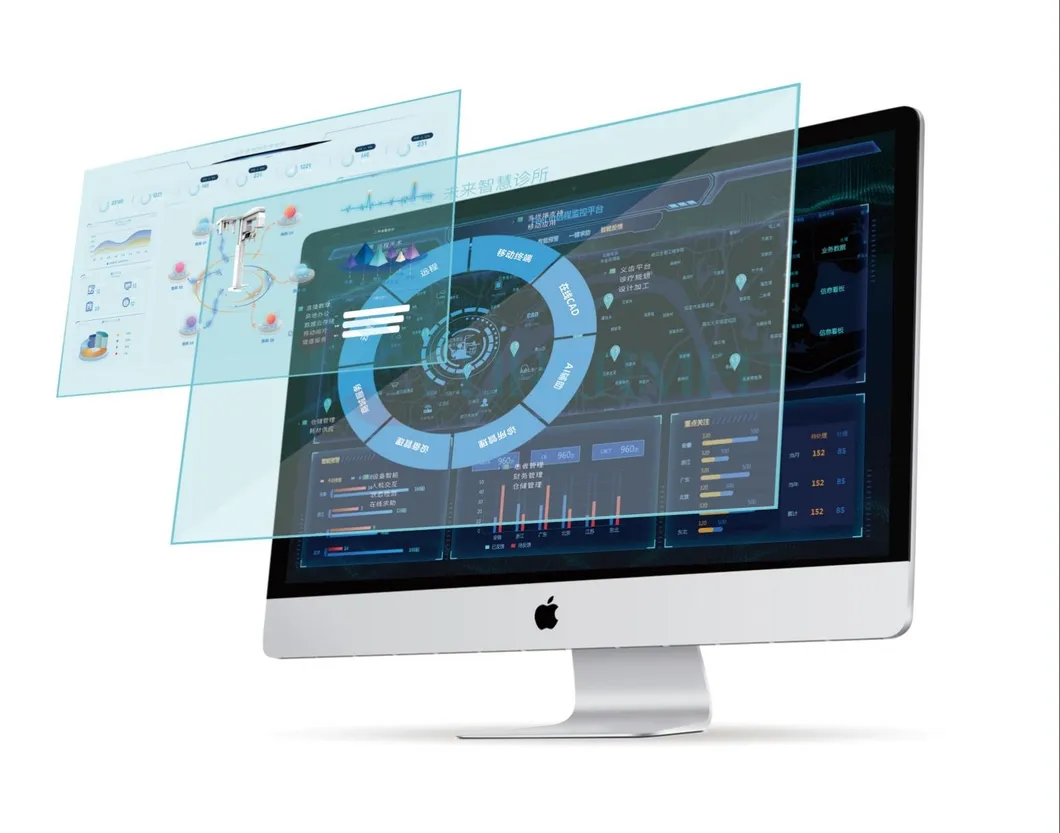

Digital Dentistry System
- Advanced software design tailored for digital workflows.
- The perfect imaging partner for modern dental offices.
| Mode | CBCT, Panoramic, Cephla, TMJ |
|---|---|
| Grey Scale | 16bit |
| Tube Voltage | 70~90Kv |
| Tube Current | 4mA~10mA |
| Focus | 0.5mm |
| Patient Position | Stand up, face to face |
| Scanning Time | CBCT 15s, Panoramic 17s, Cephla 0.7s/12s, TMJ 20s |
| Reconstruction | <60s |

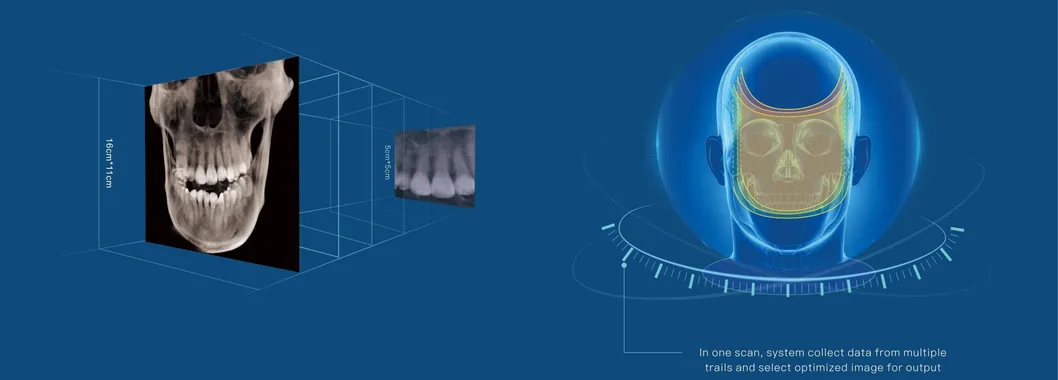

| FOV (Adjustable) | 15cm*10cm, 16cm*11cm, 16cm*17cm |
| Voxel Size | 0.25mm, 0.2mm, 0.1mm, 0.075mm |

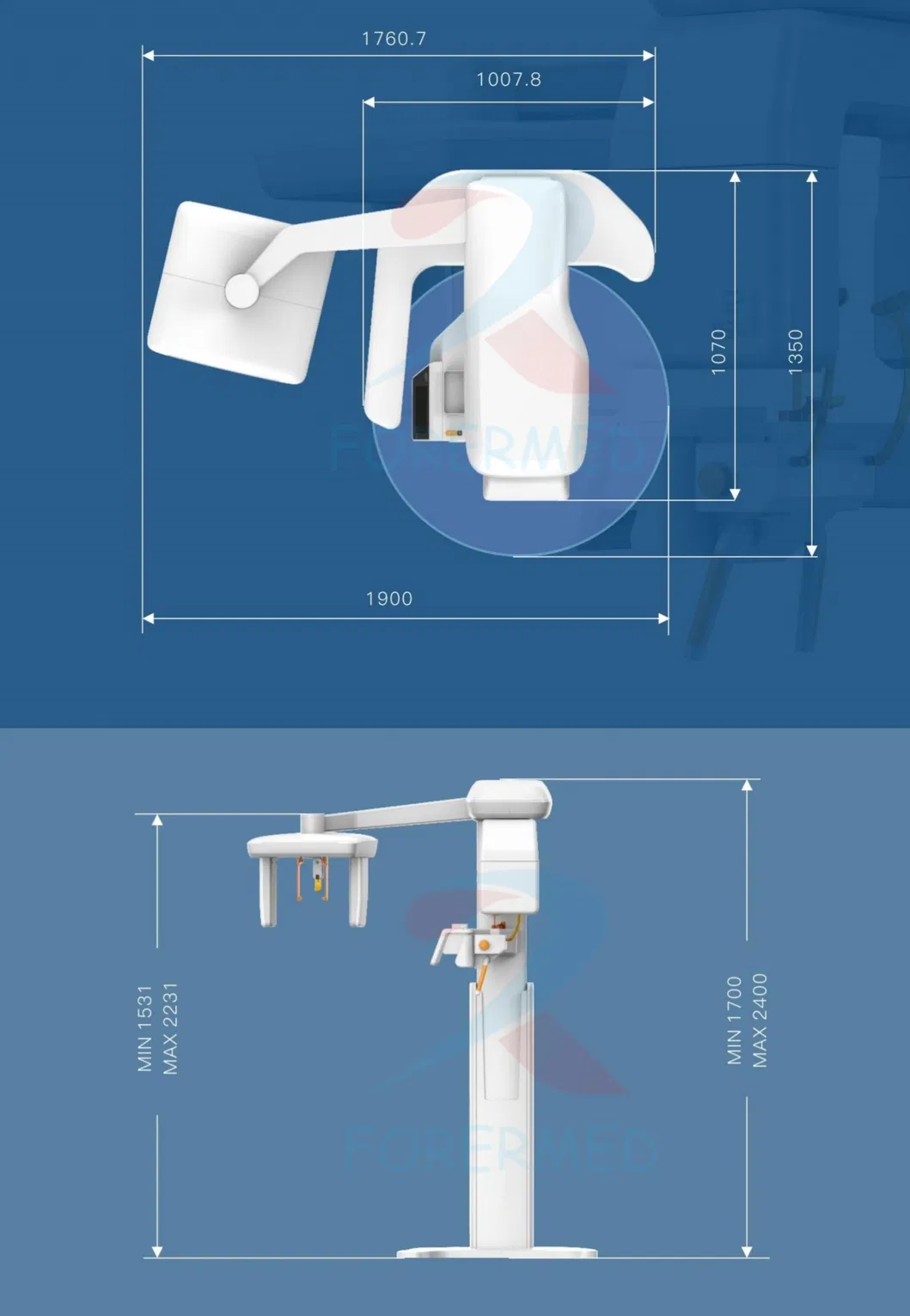

| Dimensions | 1900mm (L) * 1350mm (W) * 1700~2400mm (H) |
| Min. Footprint | 2500mm*2000mm*2700mm (with Cephla) |

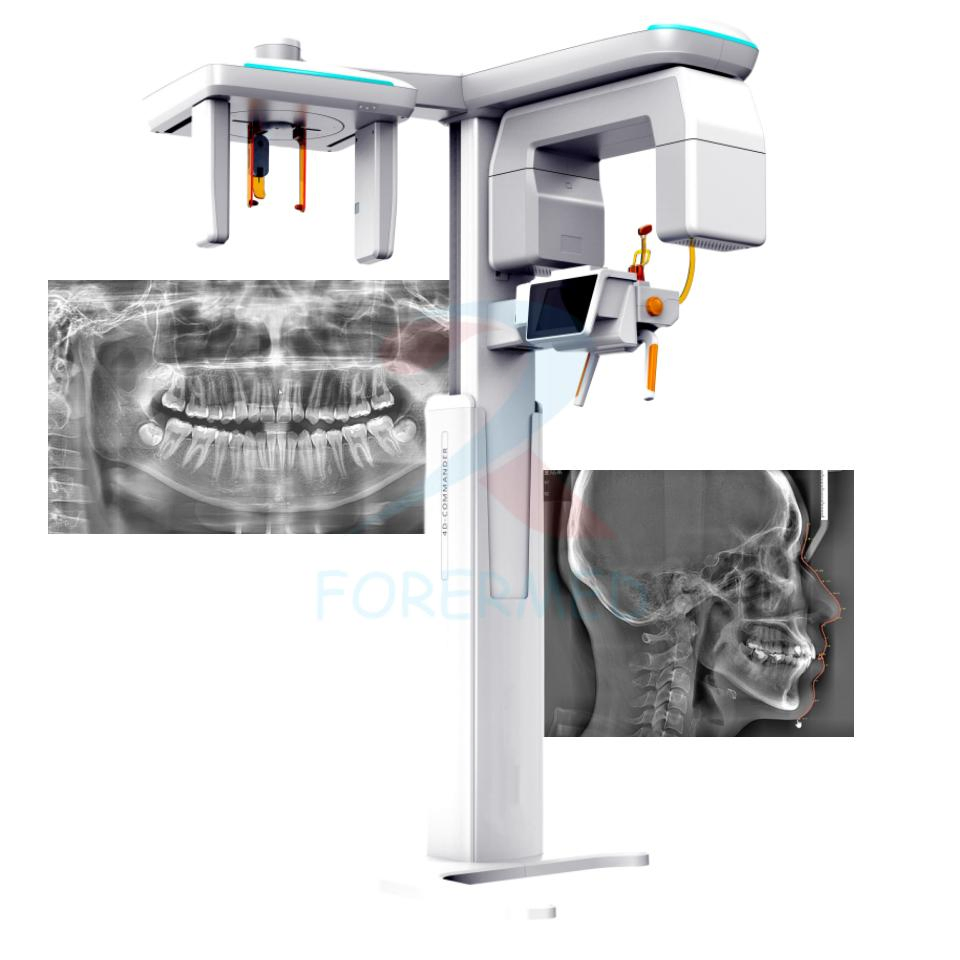

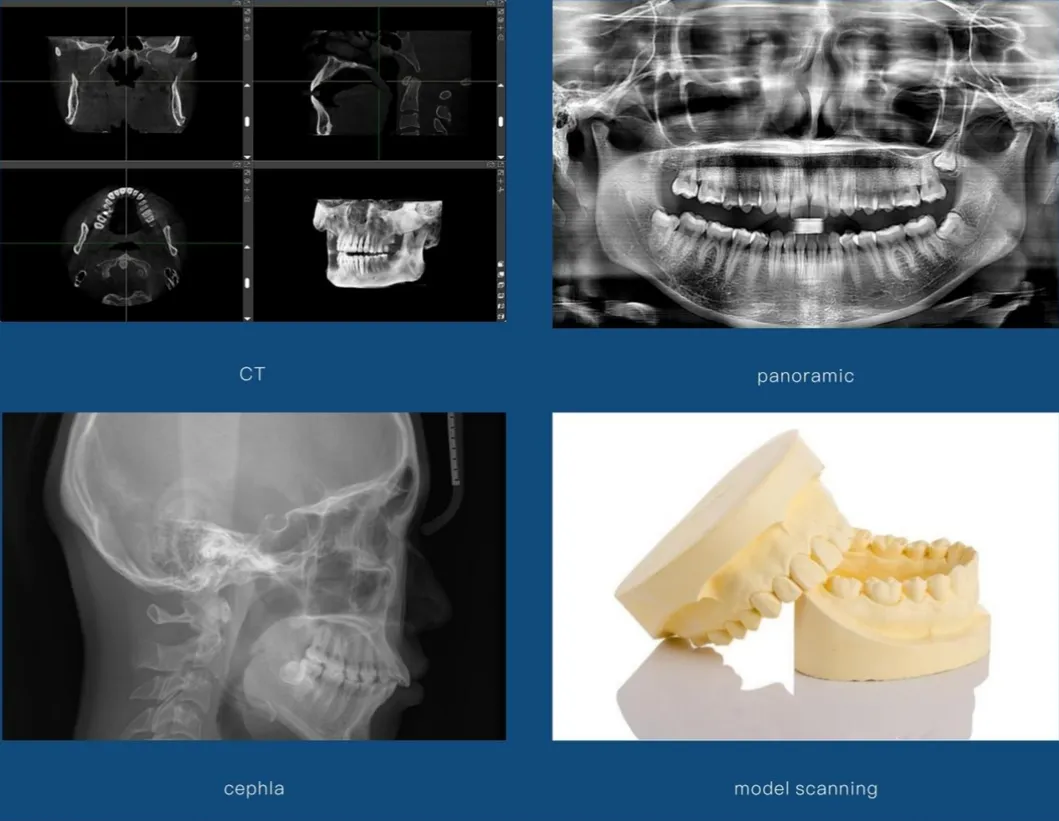

The machine supports CBCT, Panoramic, Cephla, and TMJ imaging modes to cover comprehensive dental diagnostics.
A standard CBCT scan takes approximately 15 seconds, while a panoramic scan takes 17 seconds.

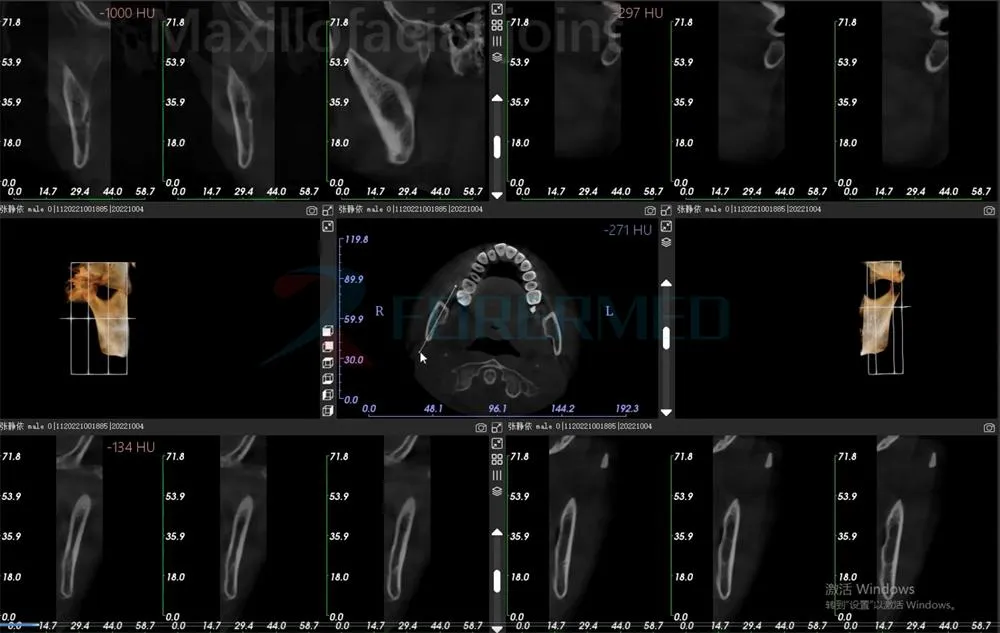

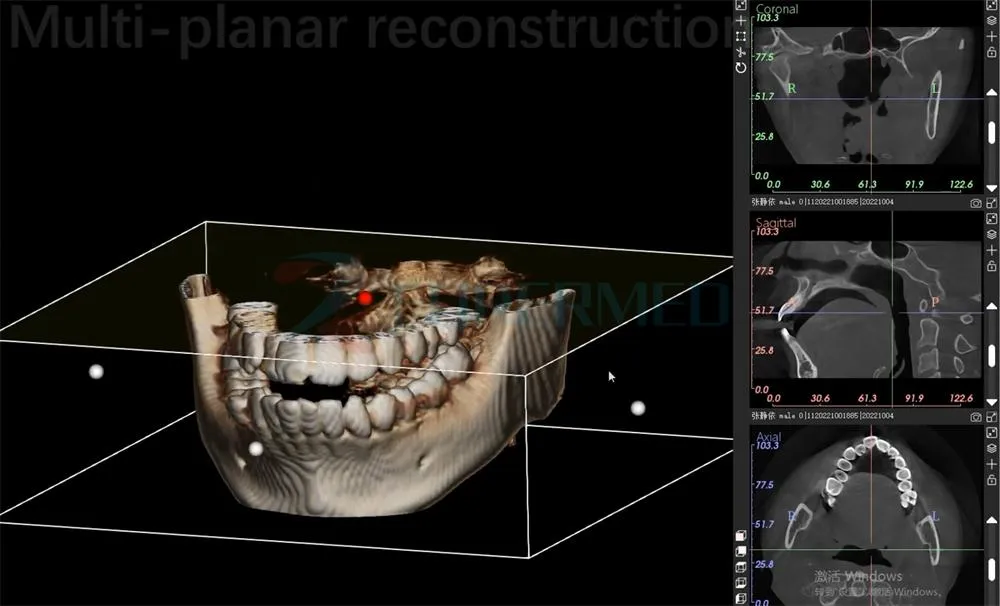

It offers high-resolution imaging with voxel sizes ranging from 0.075mm up to 0.25mm.

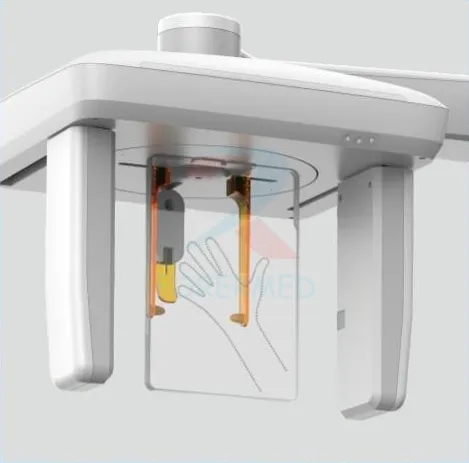

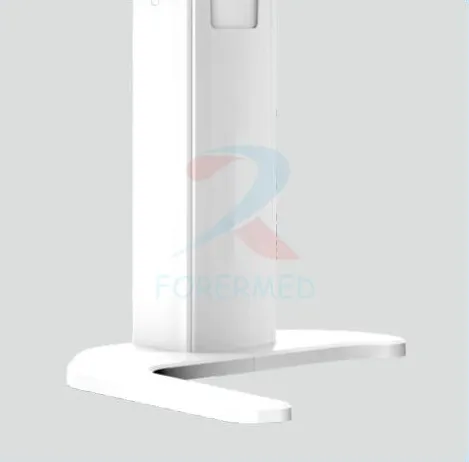

Yes, the machine features an open-side entry design specifically to allow easy access for wheelchair patients.

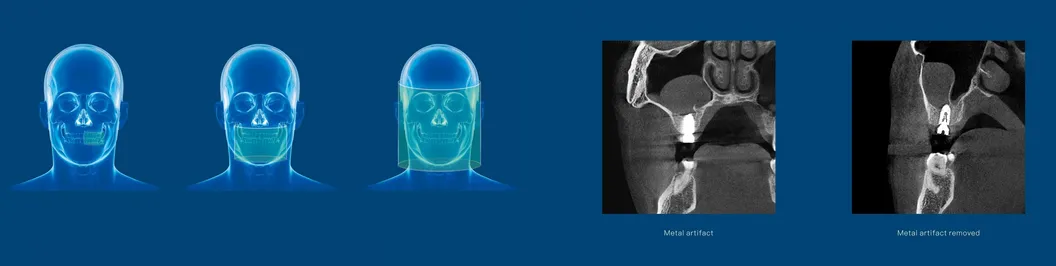

Yes, the system includes a self-developed SMARTer metal artifact removal algorithm for clearer clinical images.
The tube voltage is adjustable between 70~90Kv, and it features a high-precision 0.5mm focus.
